For Sale: All Nation Transmissions For the Lambert Locomotive Works Lima Switcher (3 Kits To Choose From) PN#562ANK
The Lima Locomotive Kits are sold separately and available from Lambert Locomotive Works.

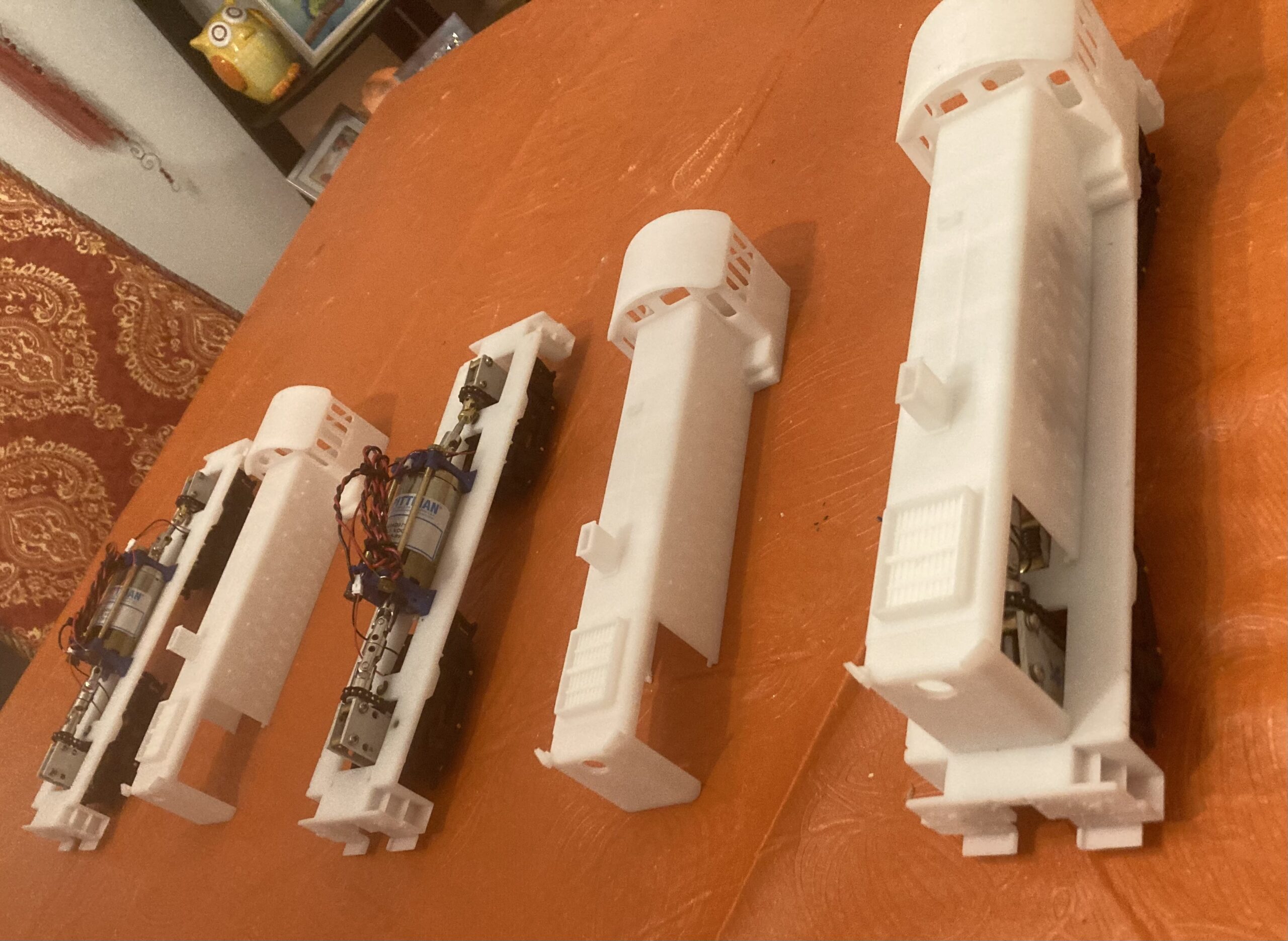

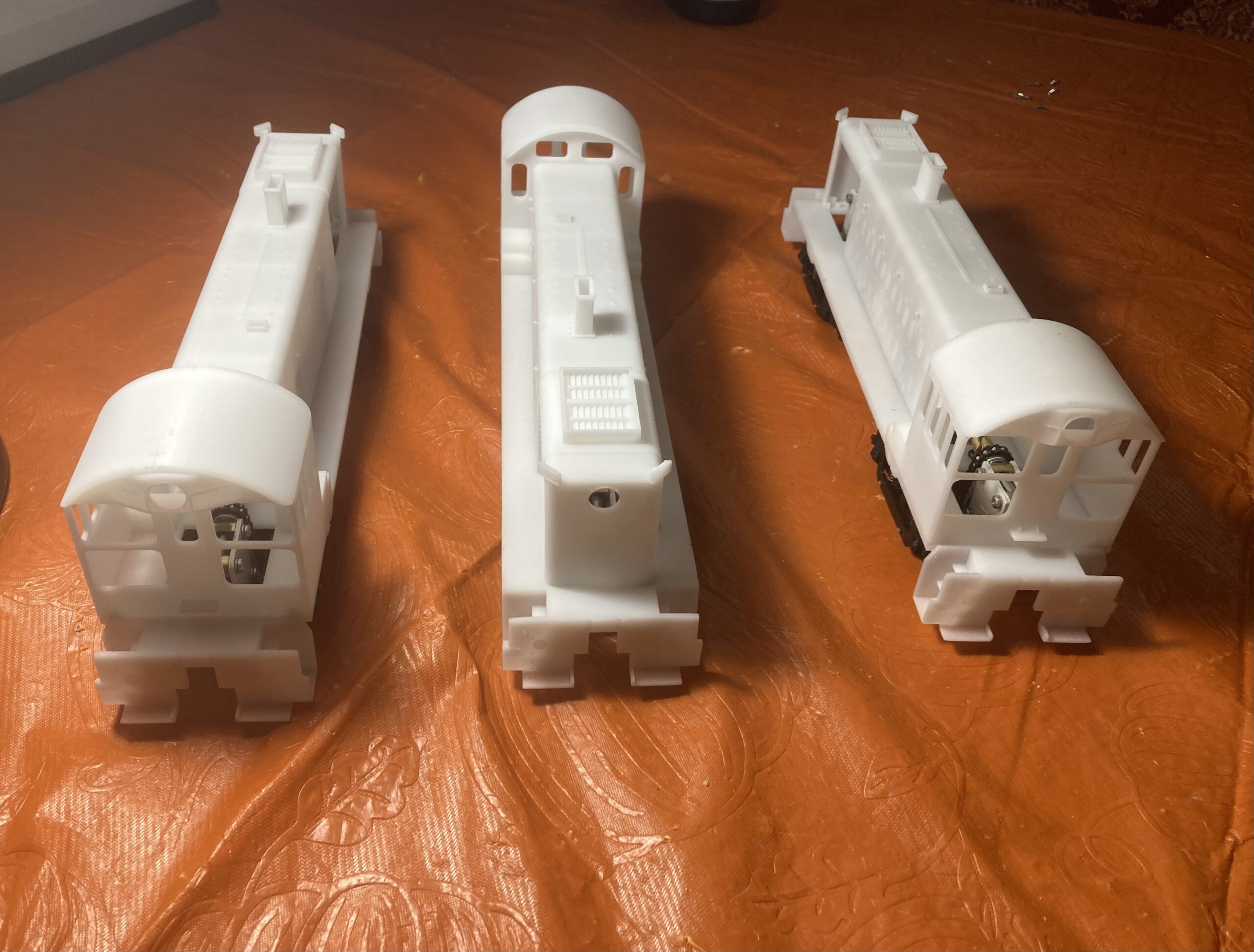

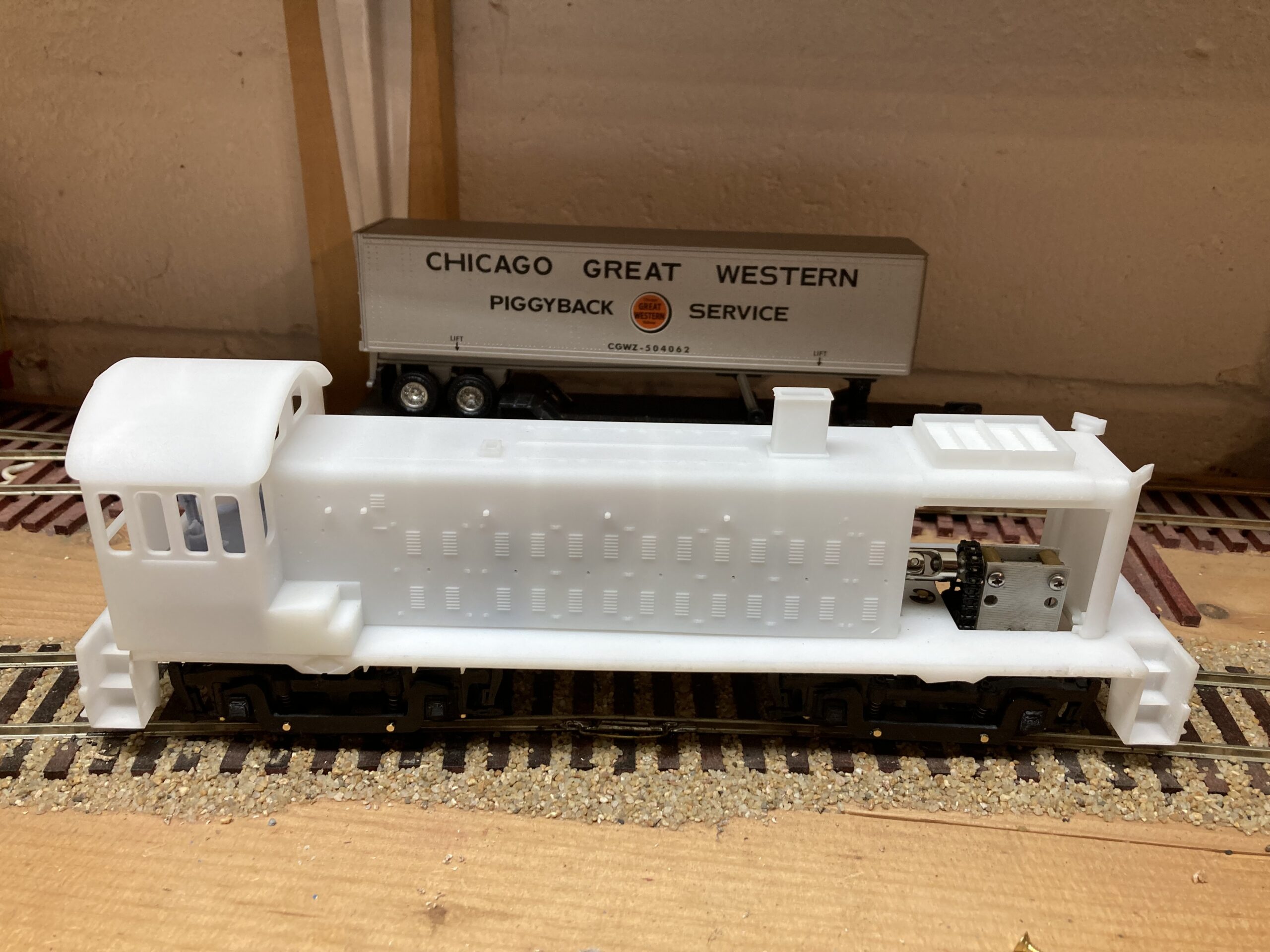

The O Scale Lima Switcher Engine released by Lambert Locomotive Works (LLW) is a fine scale model that comes in the form of a kit without power. We refer you to LLW for actual details on building the model. We recommend making your decision regarding power prior to assembling.

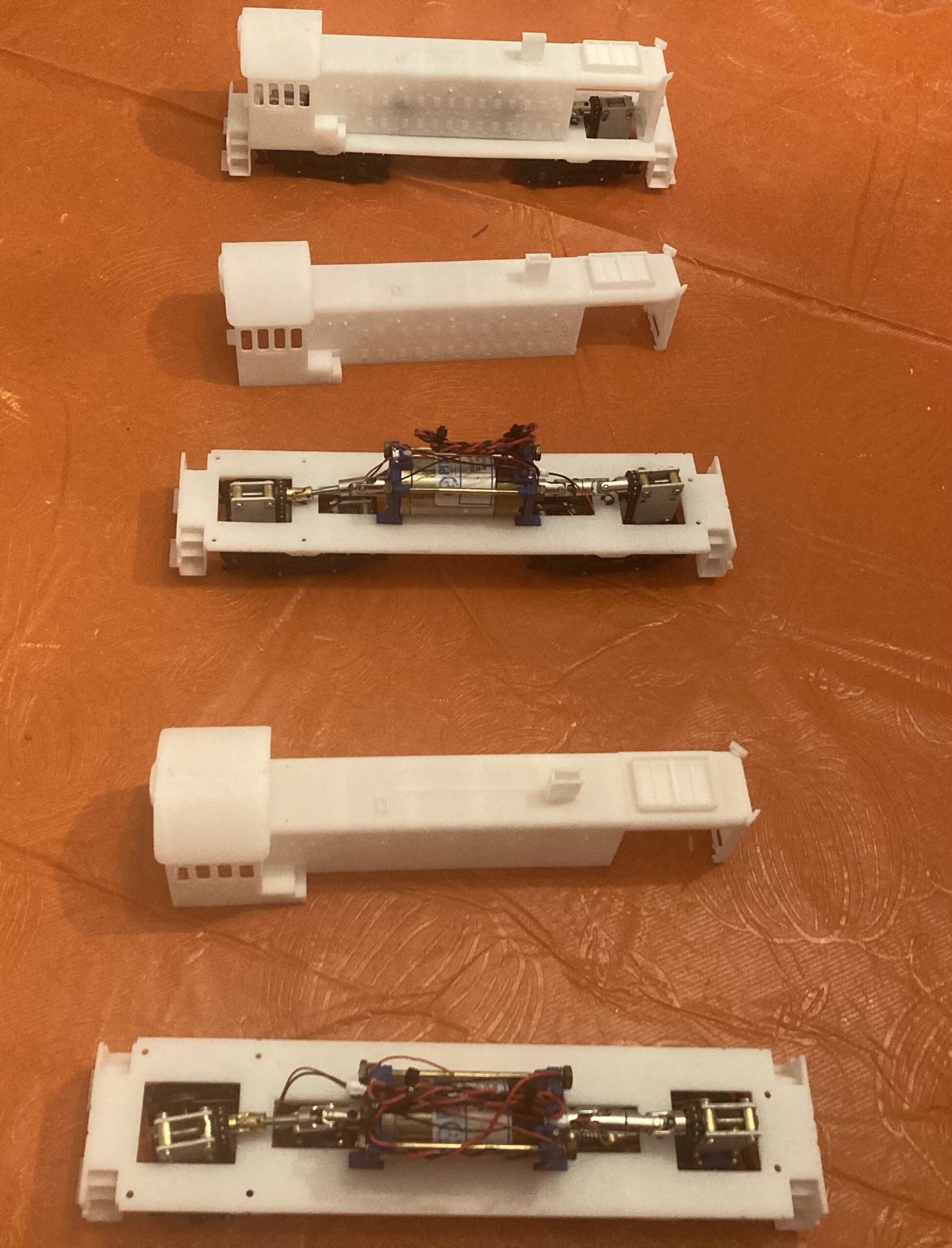

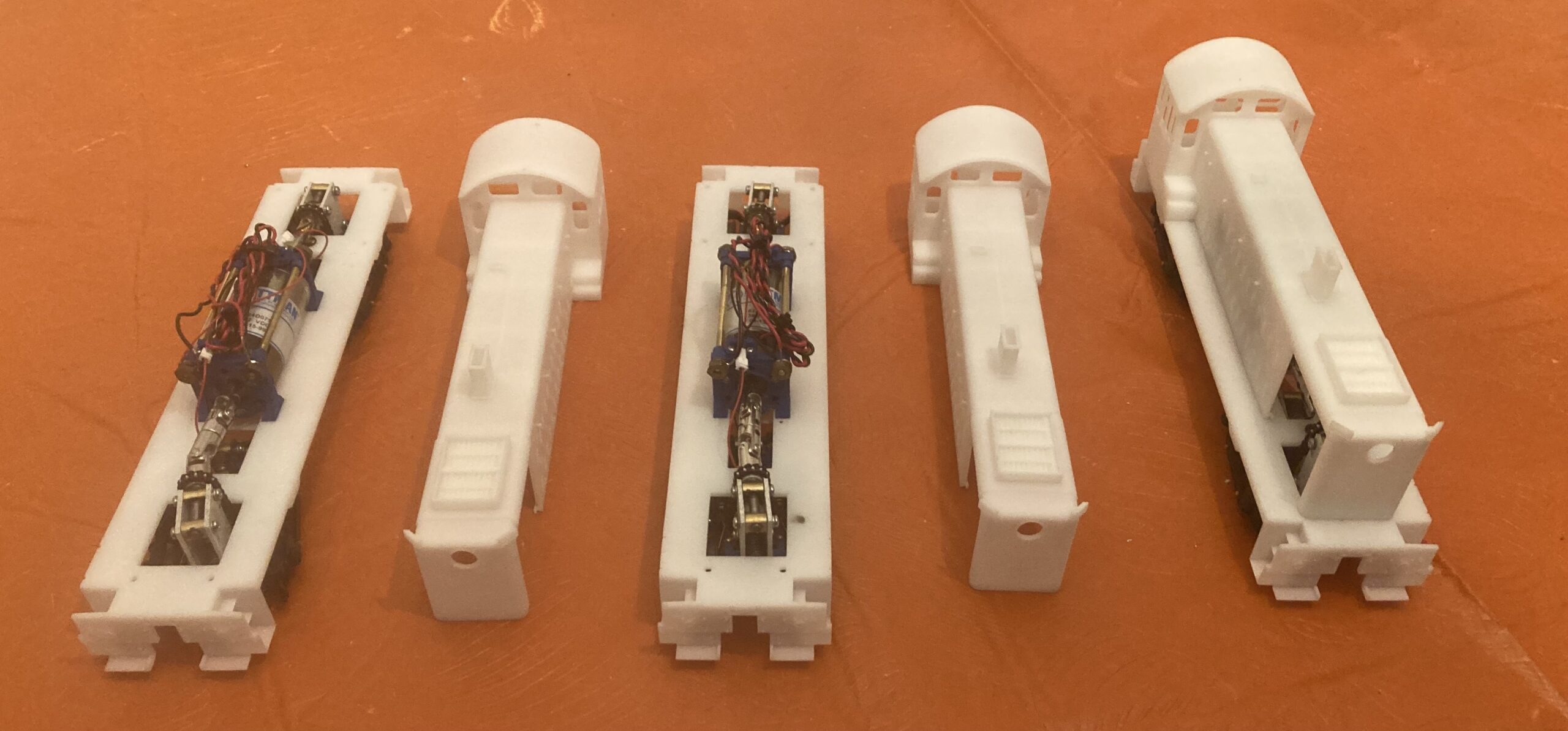

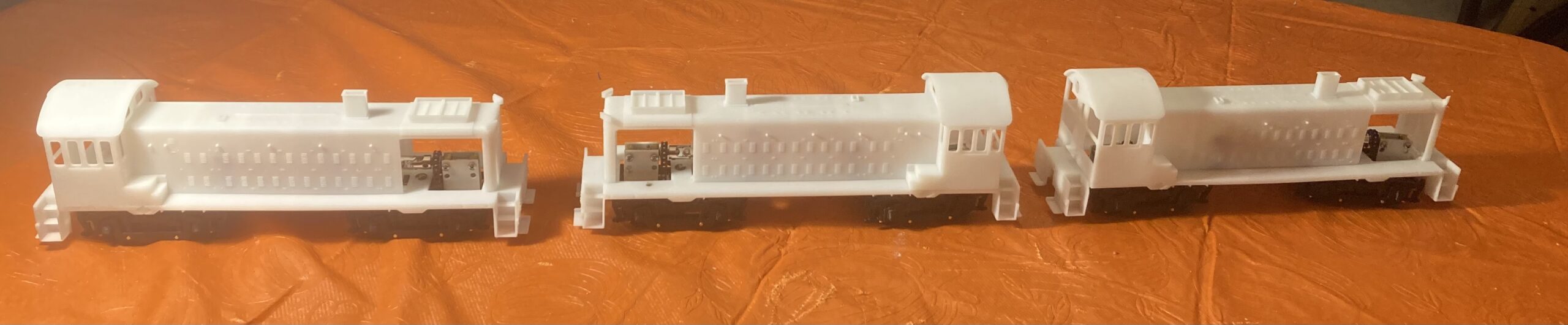

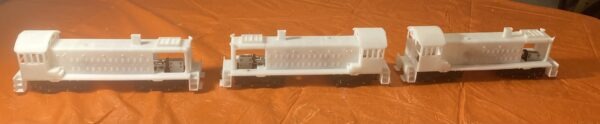

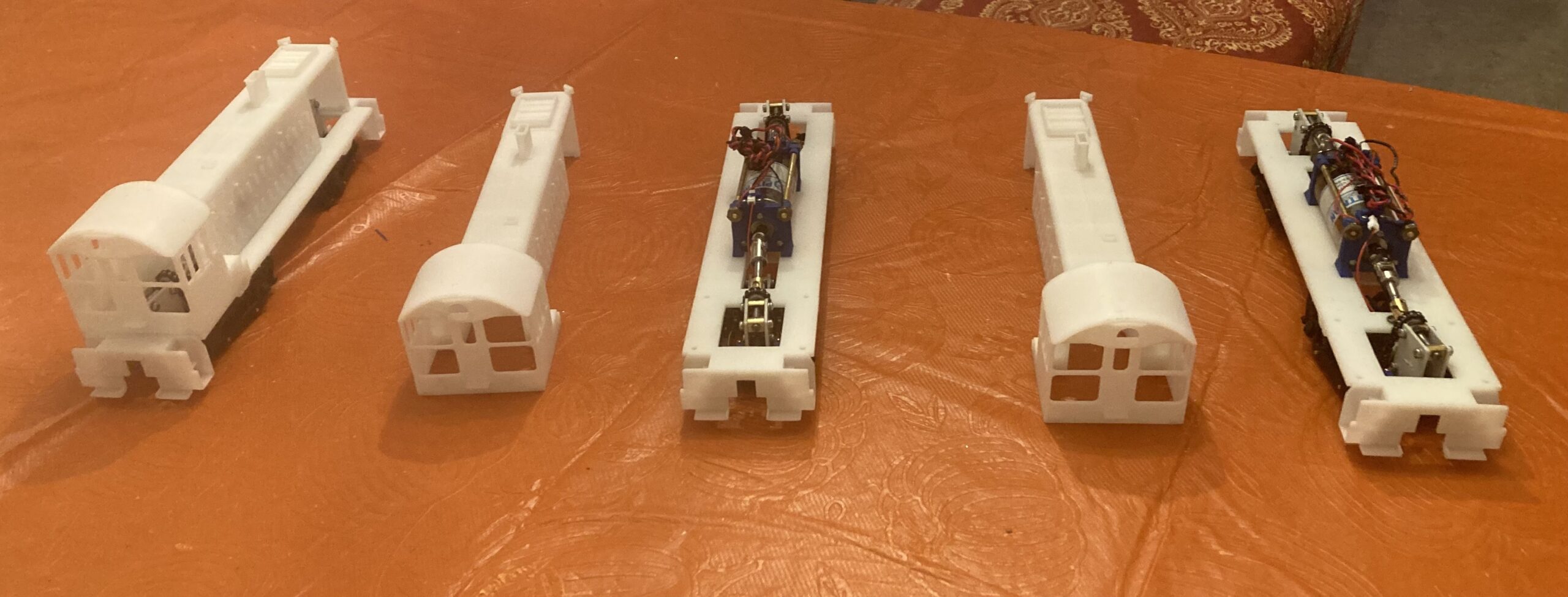

All Nation Line focuses specifically on aspects of powering the engine. The modeler has 3 kit options to choose from based on whether or not you want a non-powered (Kit 1) or a powered engine. If you want a powered engine, you need to decide if you want a single (Kit 2) or a dual (Kit 3) transmission. To help you make these decision, we suggest you review the detailed installation instructions below which includes photos and drawings. The parts list for each transmission kit is listed below.
These items are custom built and assembled by hand. Depending on stock and demand, delivery time may be 3 – 4 weeks if not in stock. Pre-orders for O Scale shows must be 4 weeks in advance with 1/2 paid up front, balance on delivery at the show.
Power Installation Video:

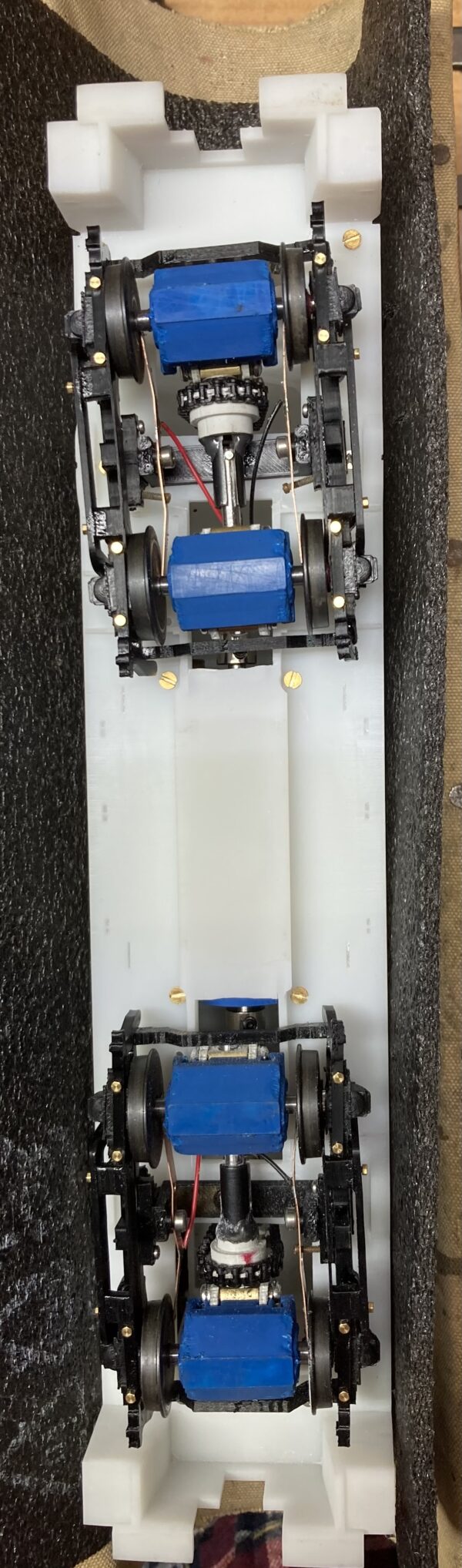

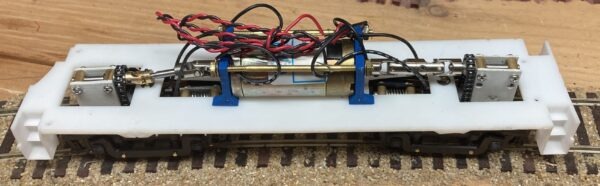

We include a few short videos of the Lima running with the dual transmission.

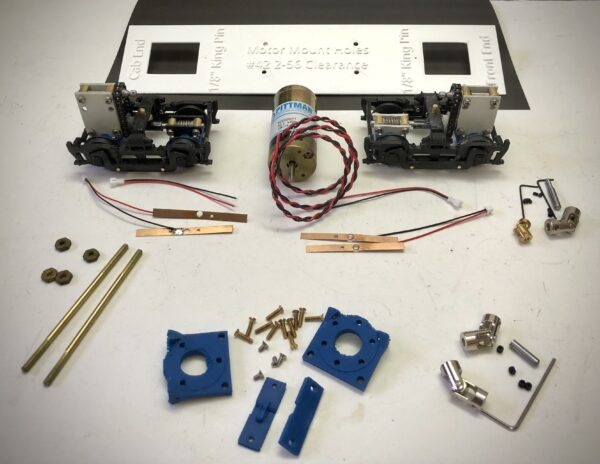

| Parts List | Kit 1
Non-powered |
Kit 2
Single Transmission |
Kit 3
Dual Transmission |

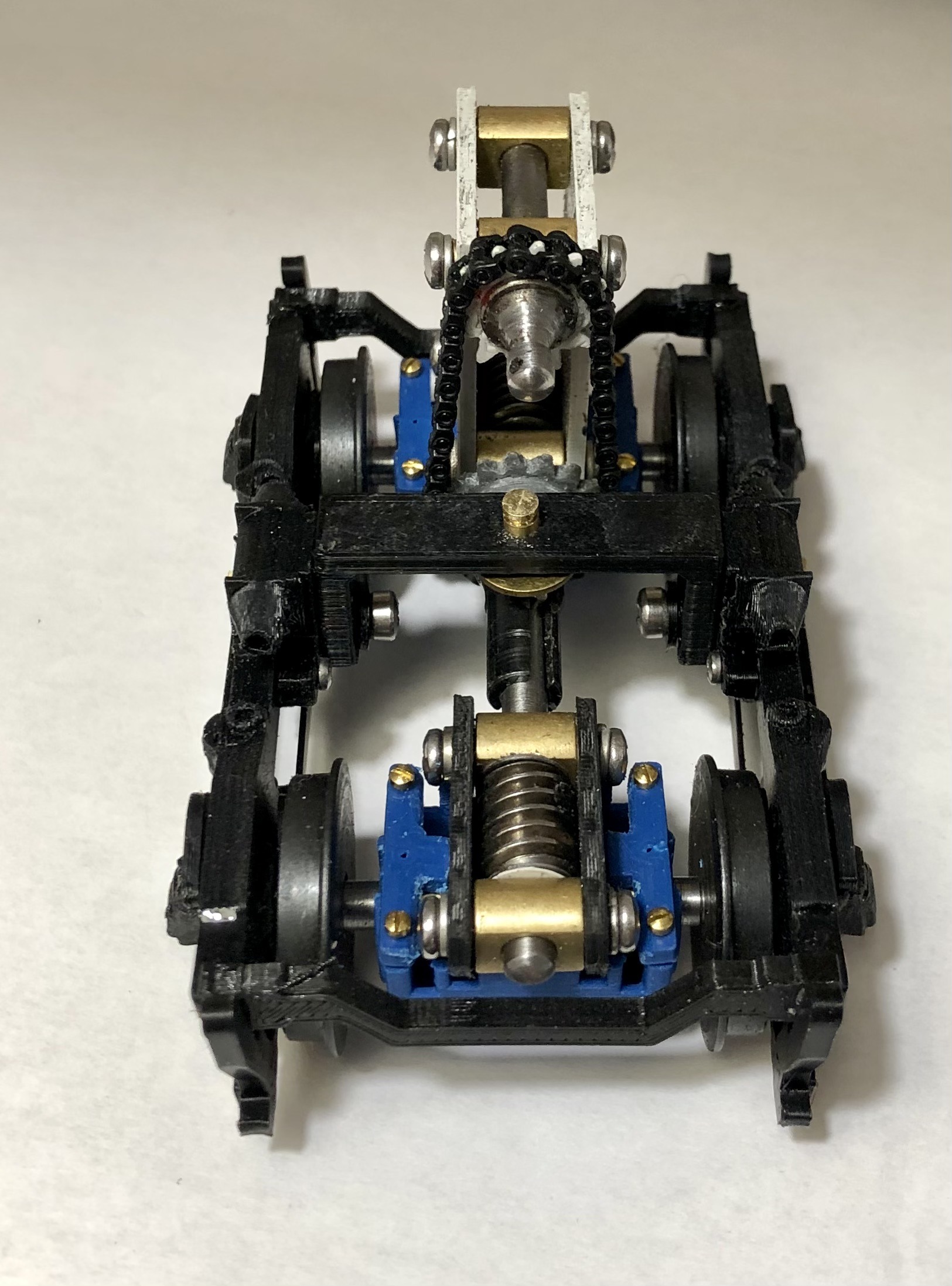

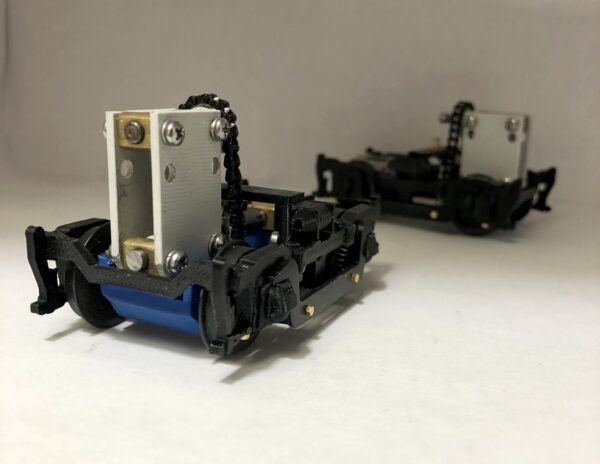

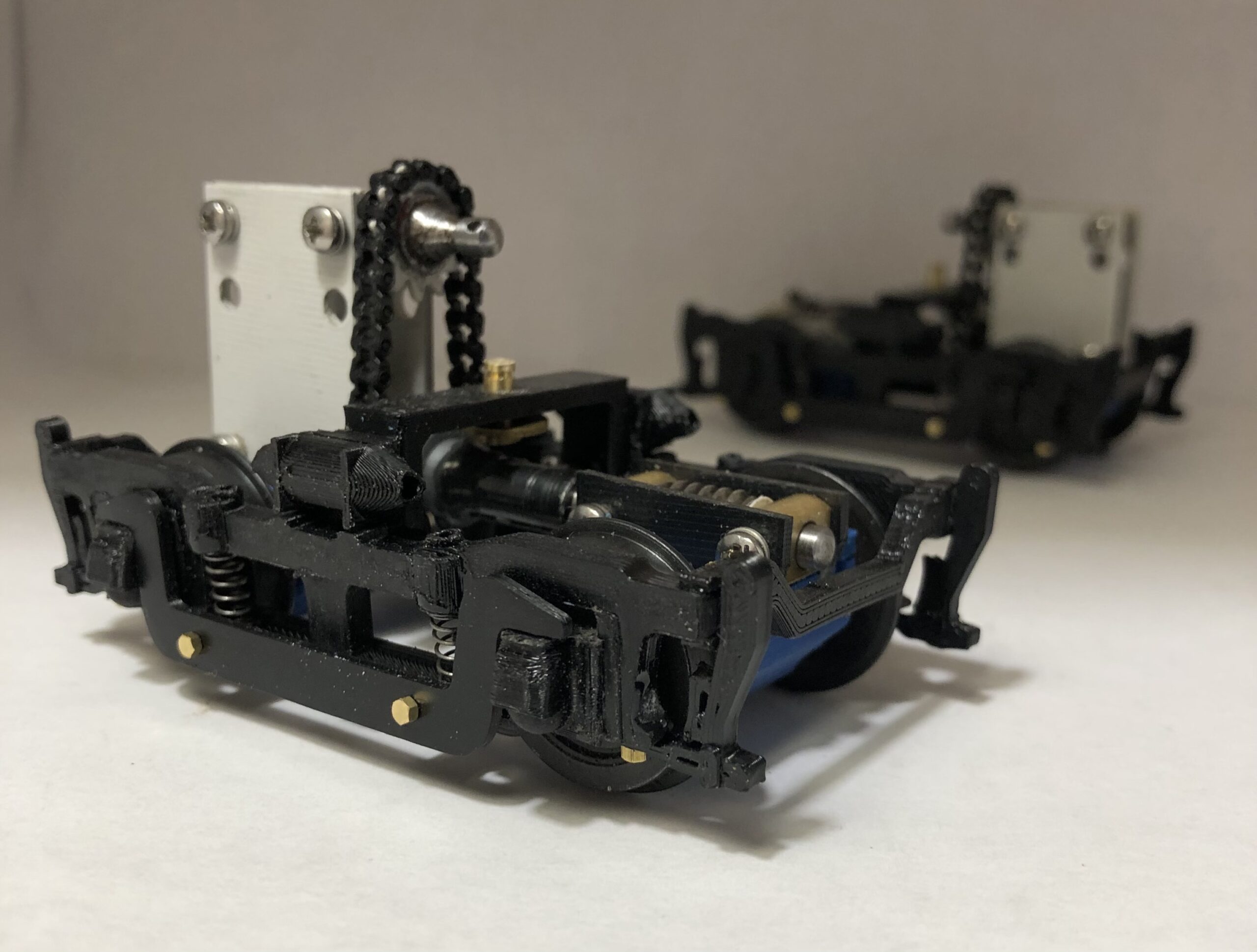

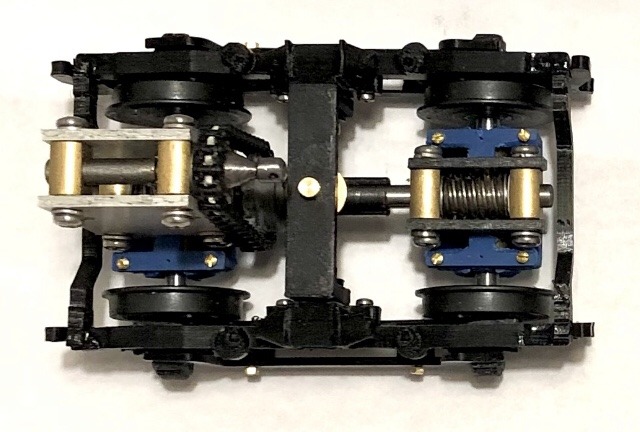

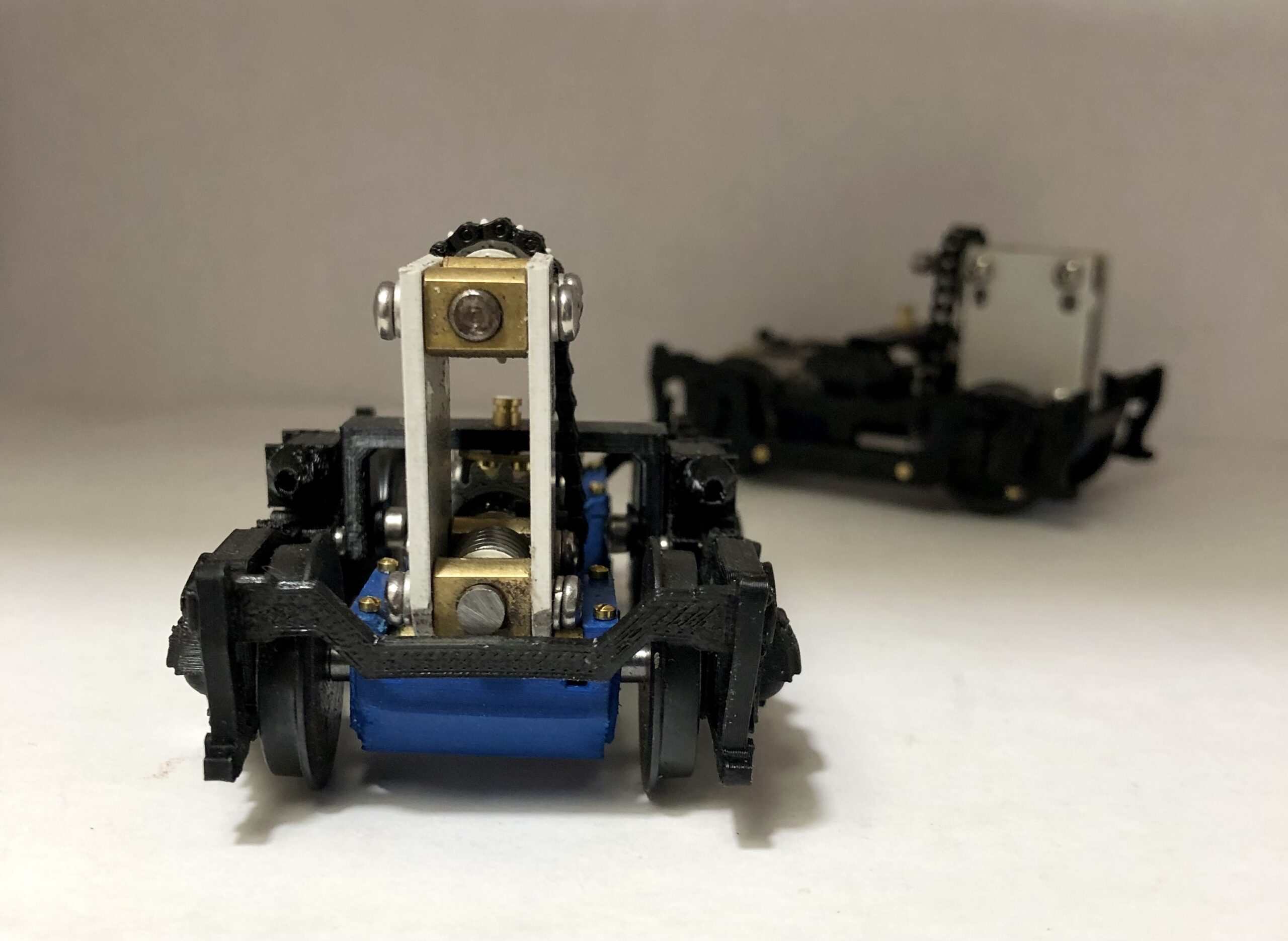

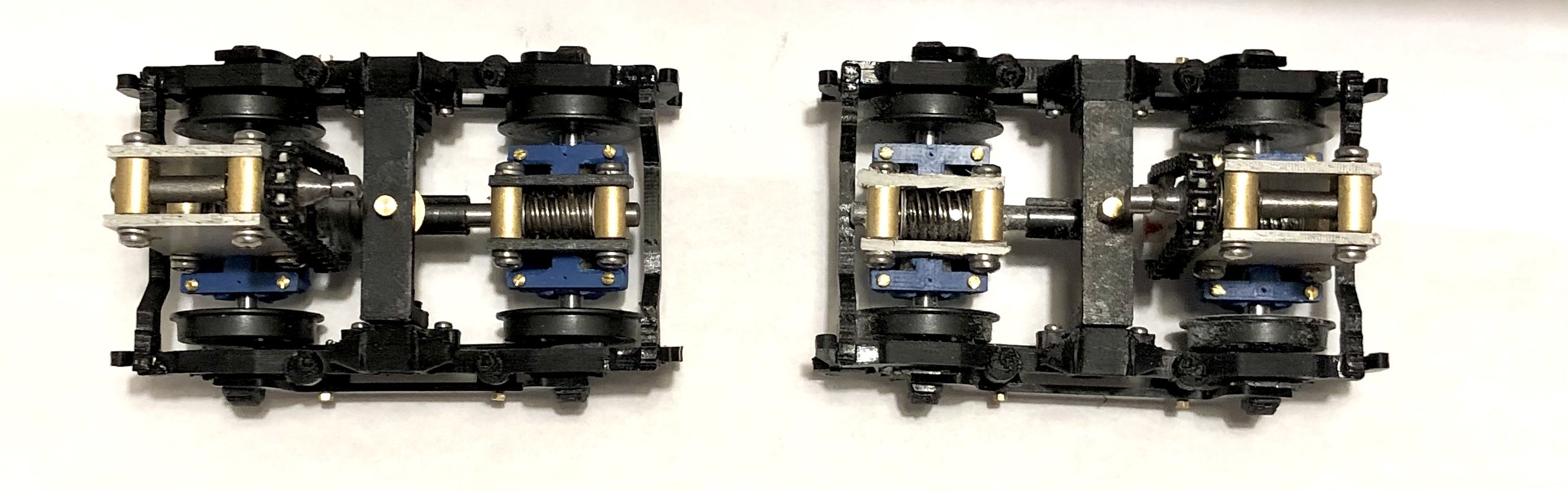

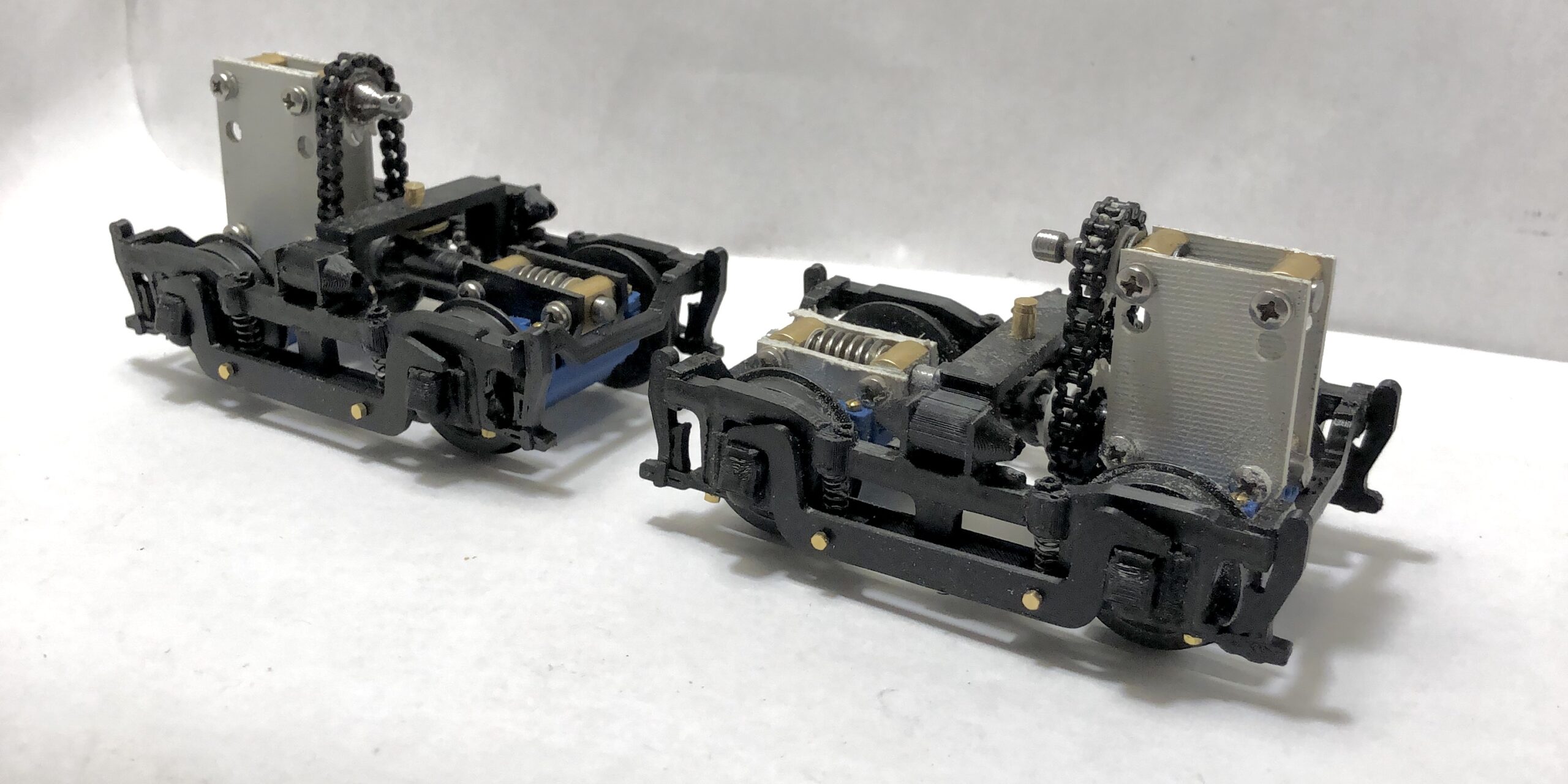

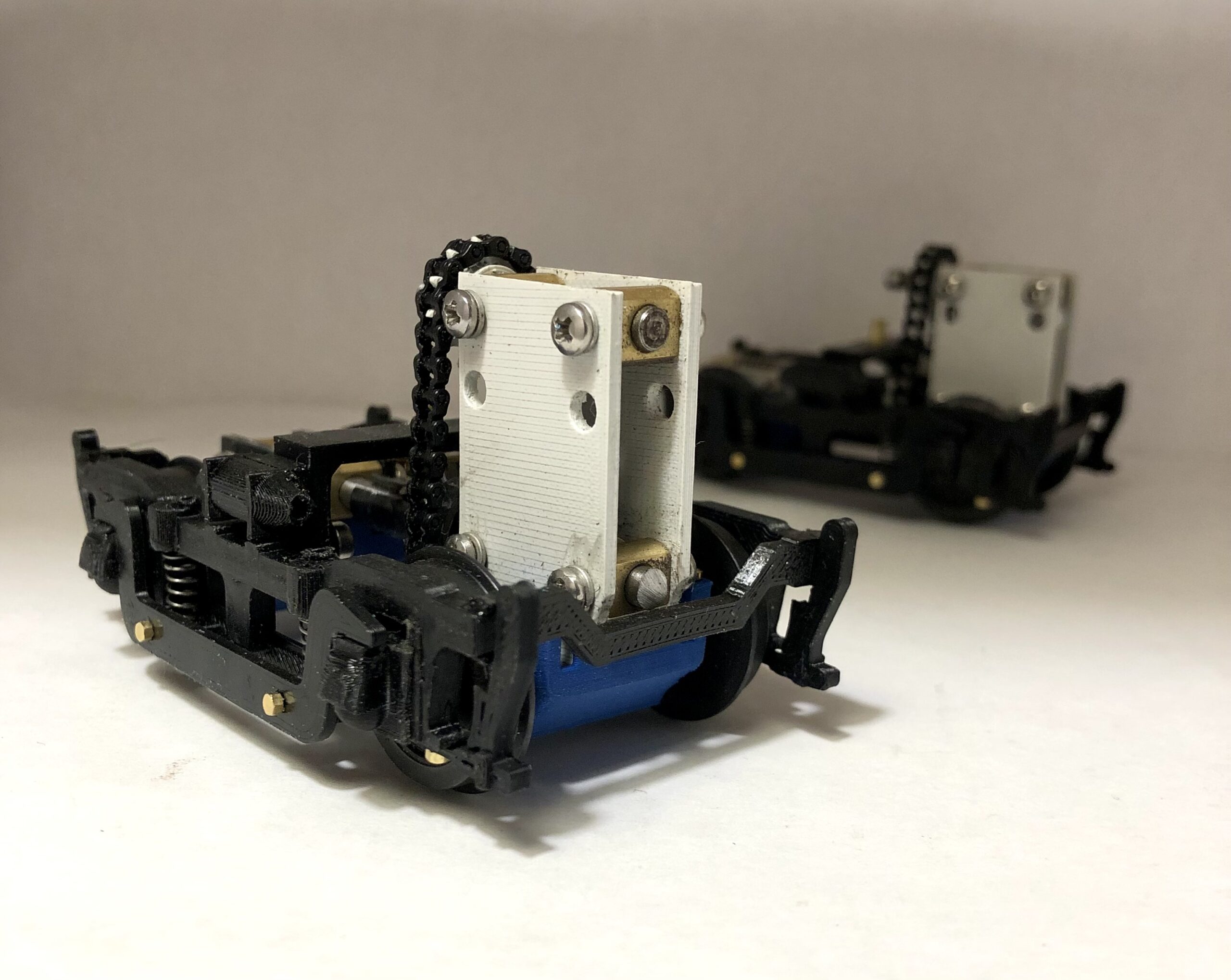

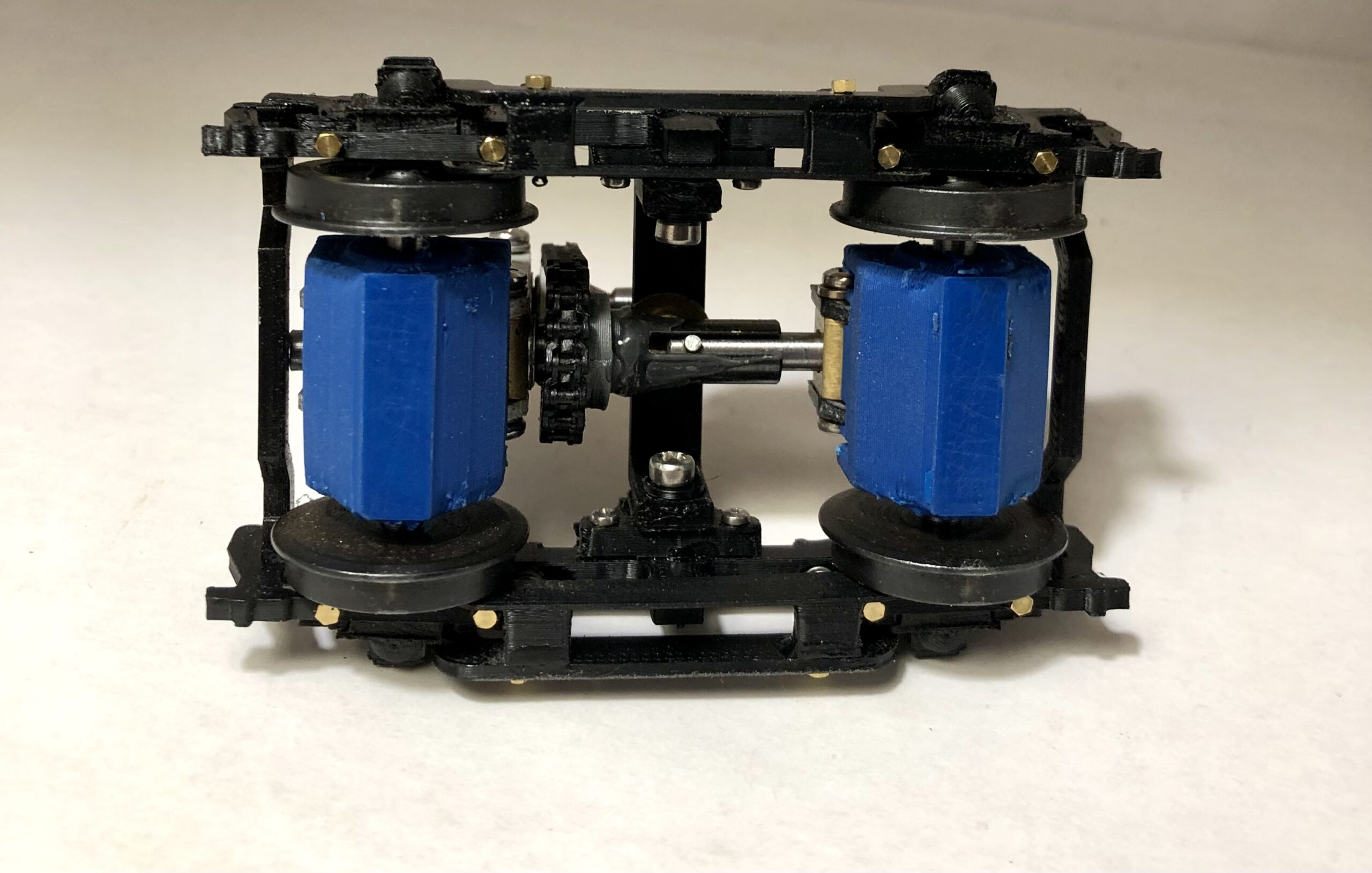

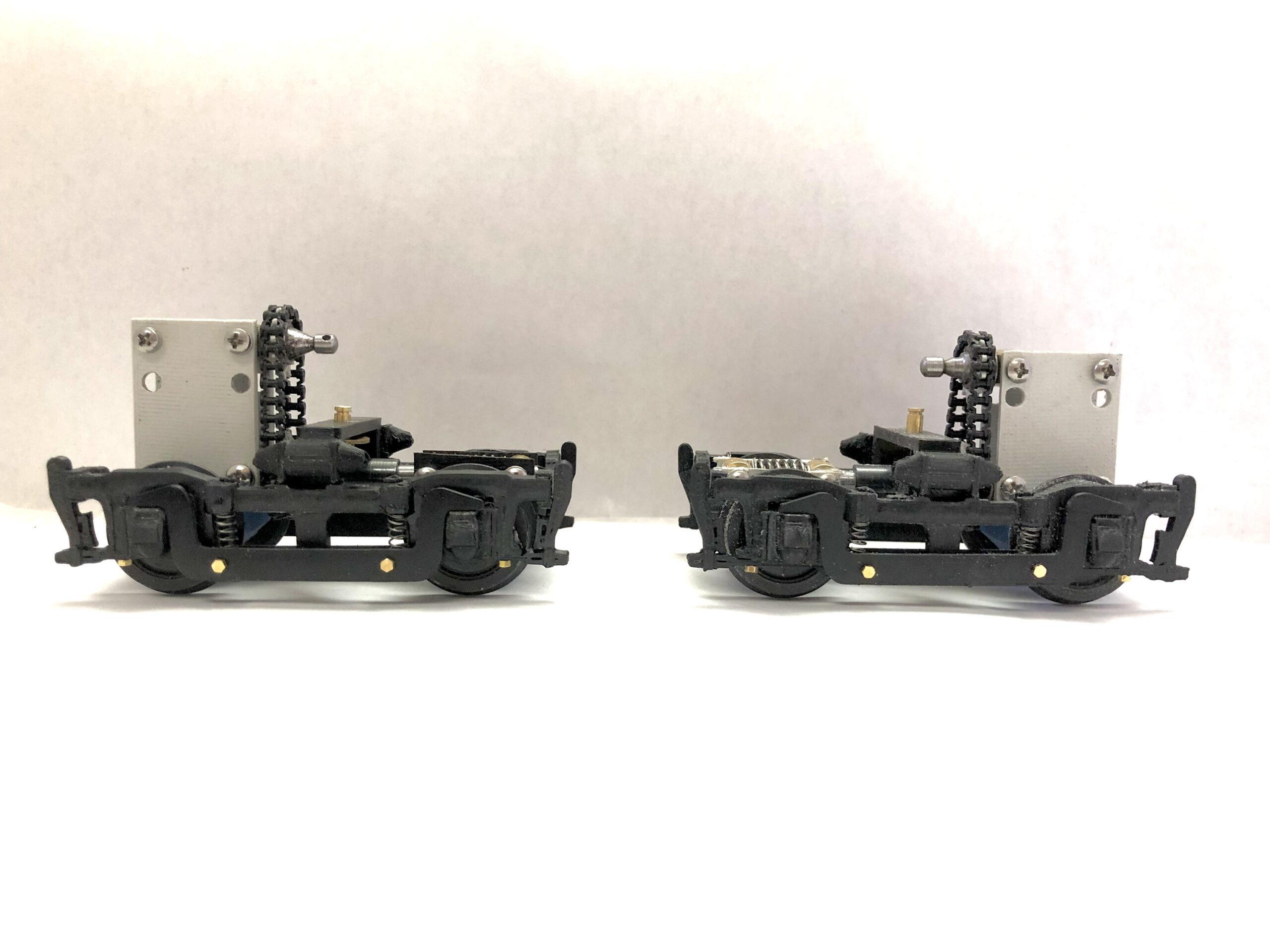

| 1 AAR Type A truck with transmission installed for Front-end power. See:
All Nation NW2 Power Truck Tower Transmission Drive – Assembled PN#303AN |
X |
X |
|

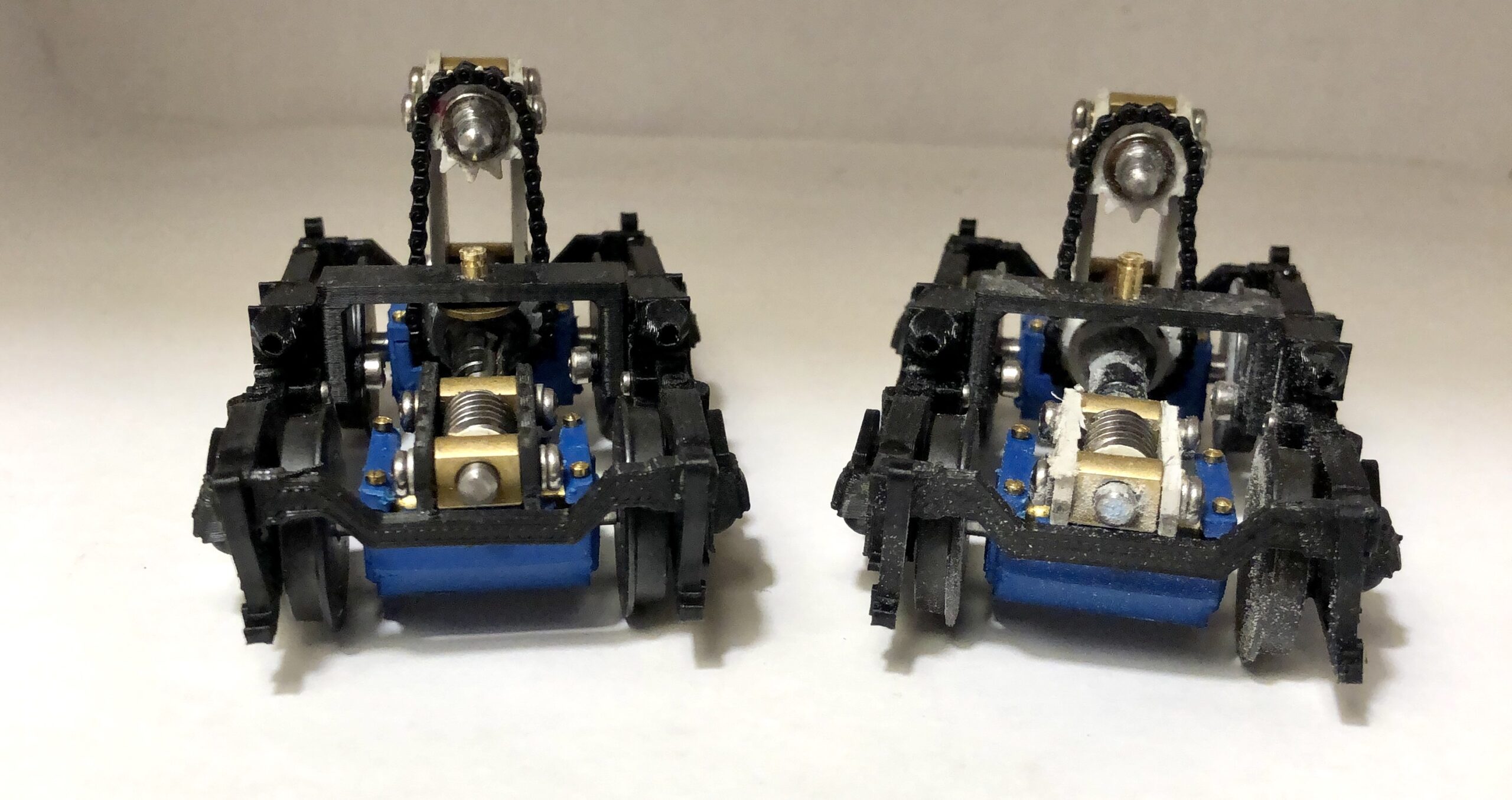

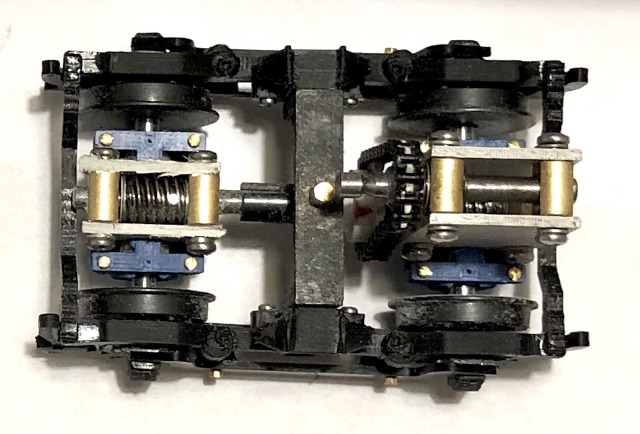

| 1 AAR Type A truck with low height transmission installed for Cab-end power. See comparable transmission not installed in the truck: | X |
||

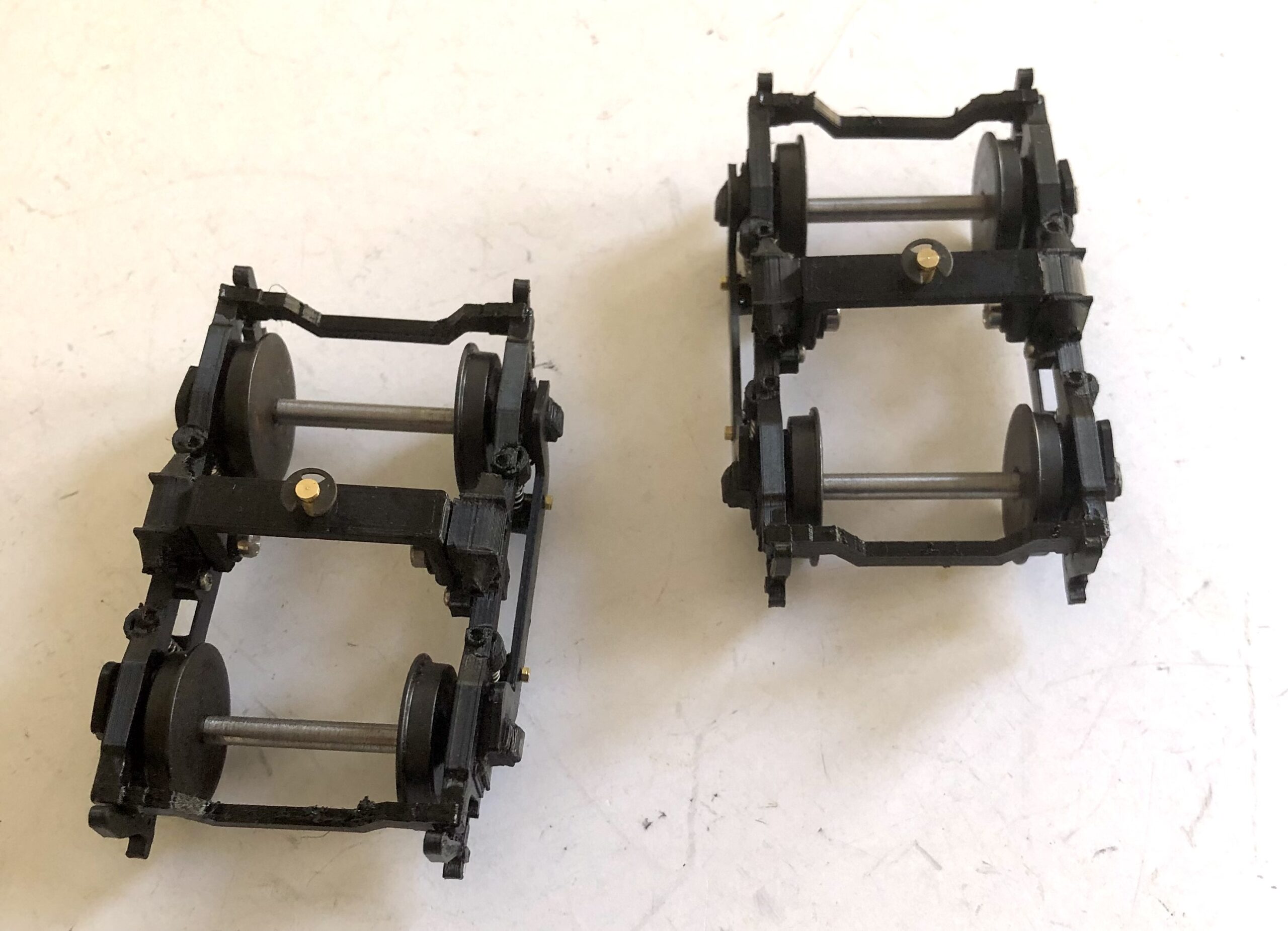

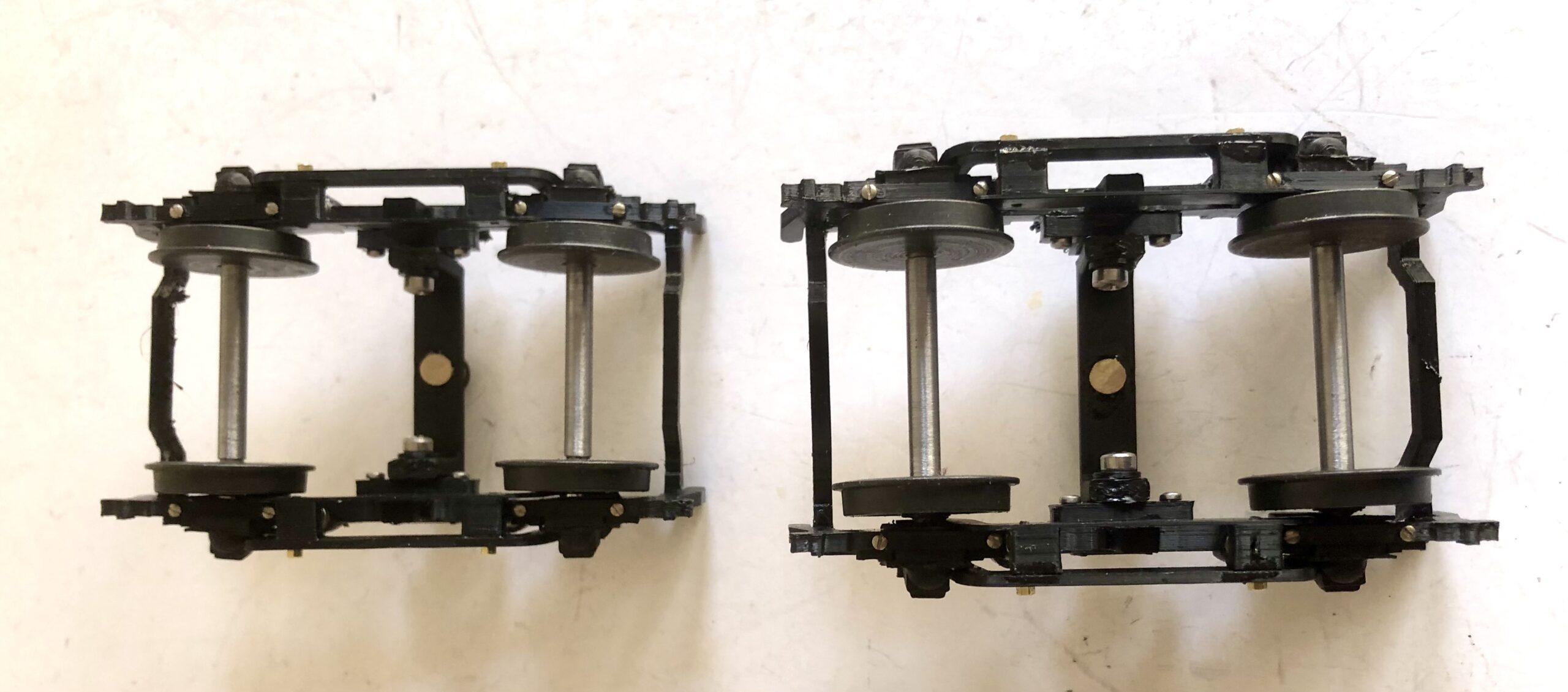

| Non-powered truck for single drive installations PN285AN. See
All Nation AAR Type A Truck ASSEMBLED with 40″ Wheels (Pair) PN#285AN |
2 | 1 |
|

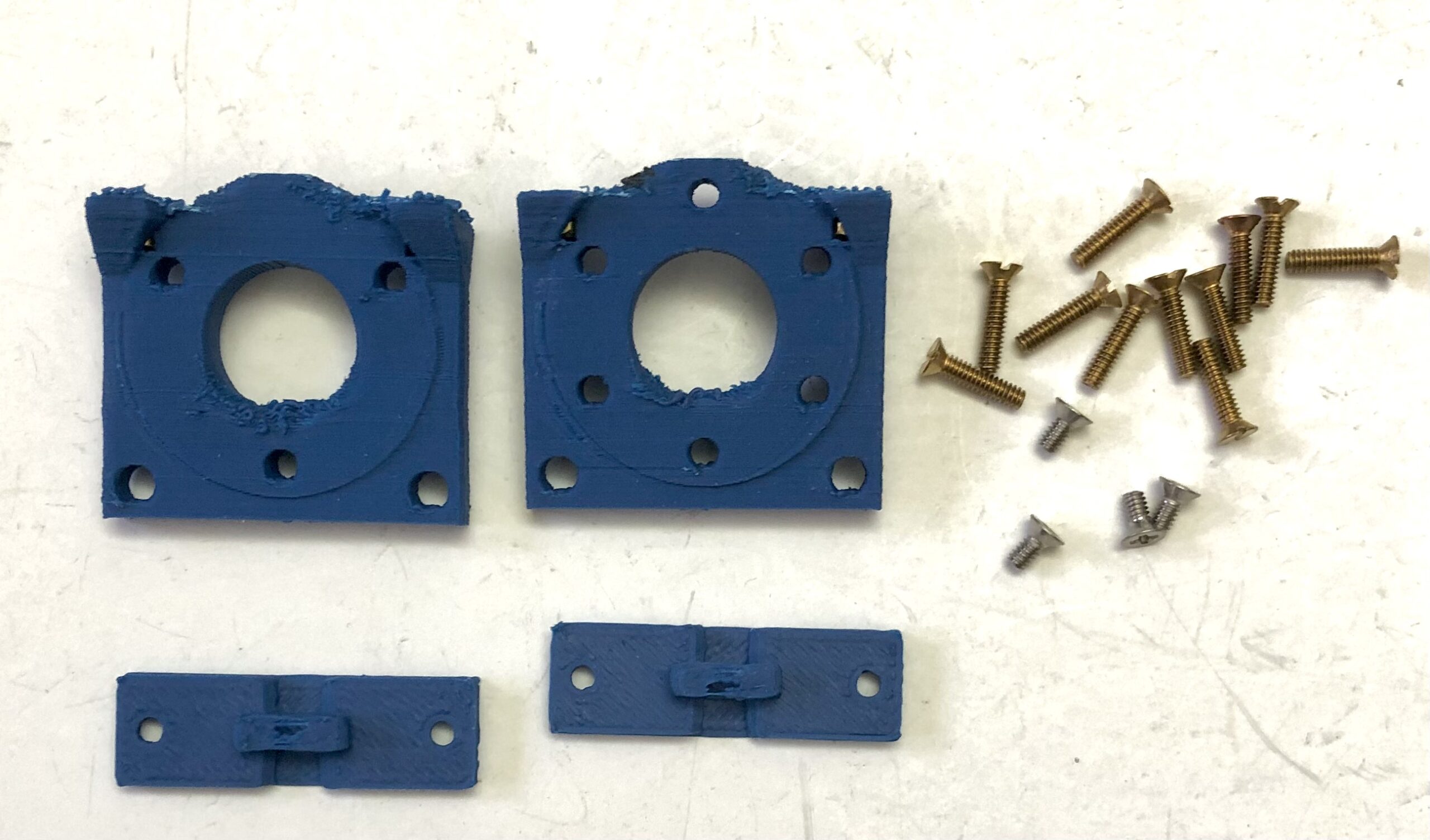

| 6 2-56 x 3/8″ Machine Screws to mount face plates to the motor ends | X | X | |

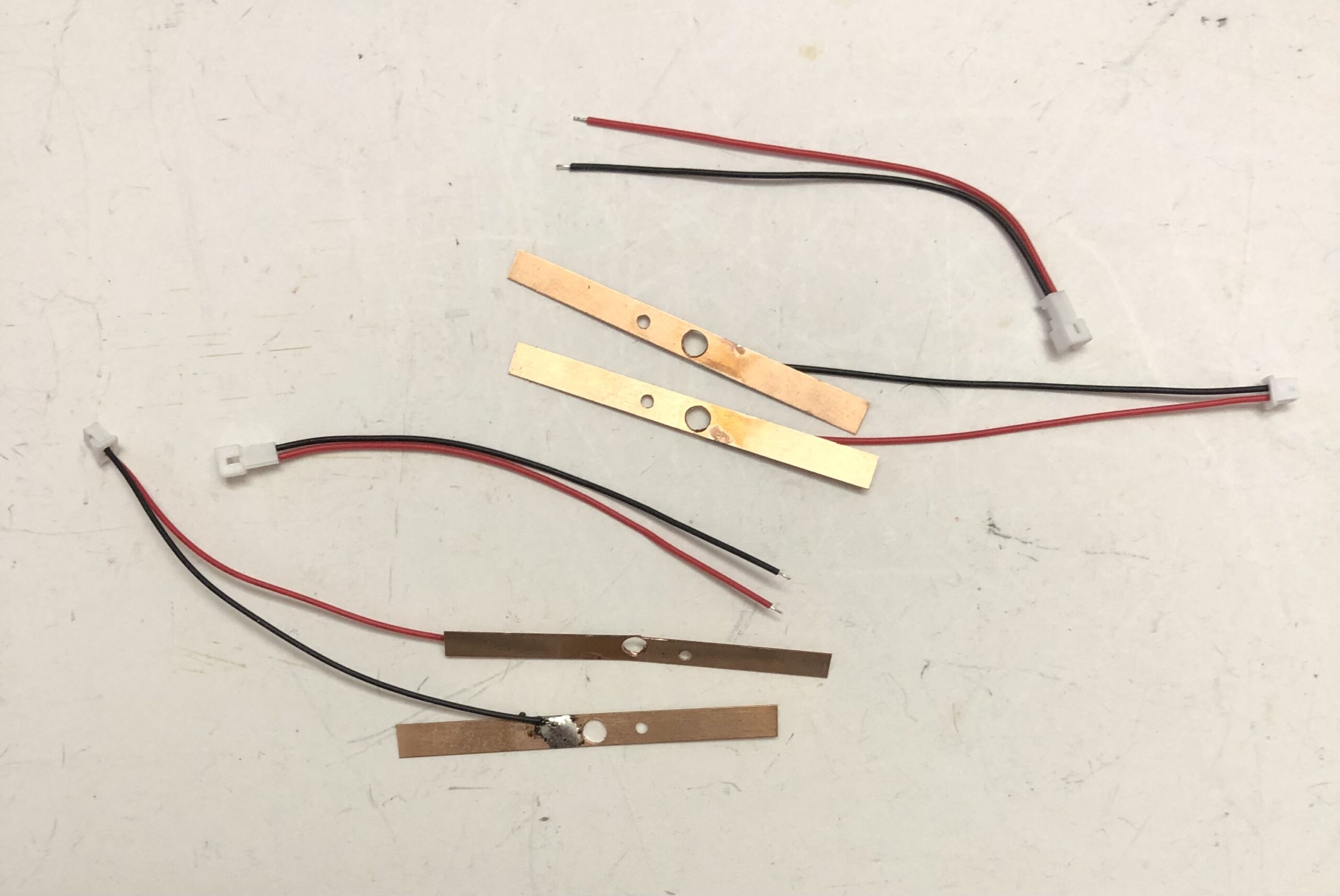

| 4 2-56 x 3/16″ Machine Screws to mount the JST wire with 2 wire bracket holders |
X | X | |
| 4 2-56 x 3/8″ Machine Screws to mount the motor assembly to the floor | X | X | |

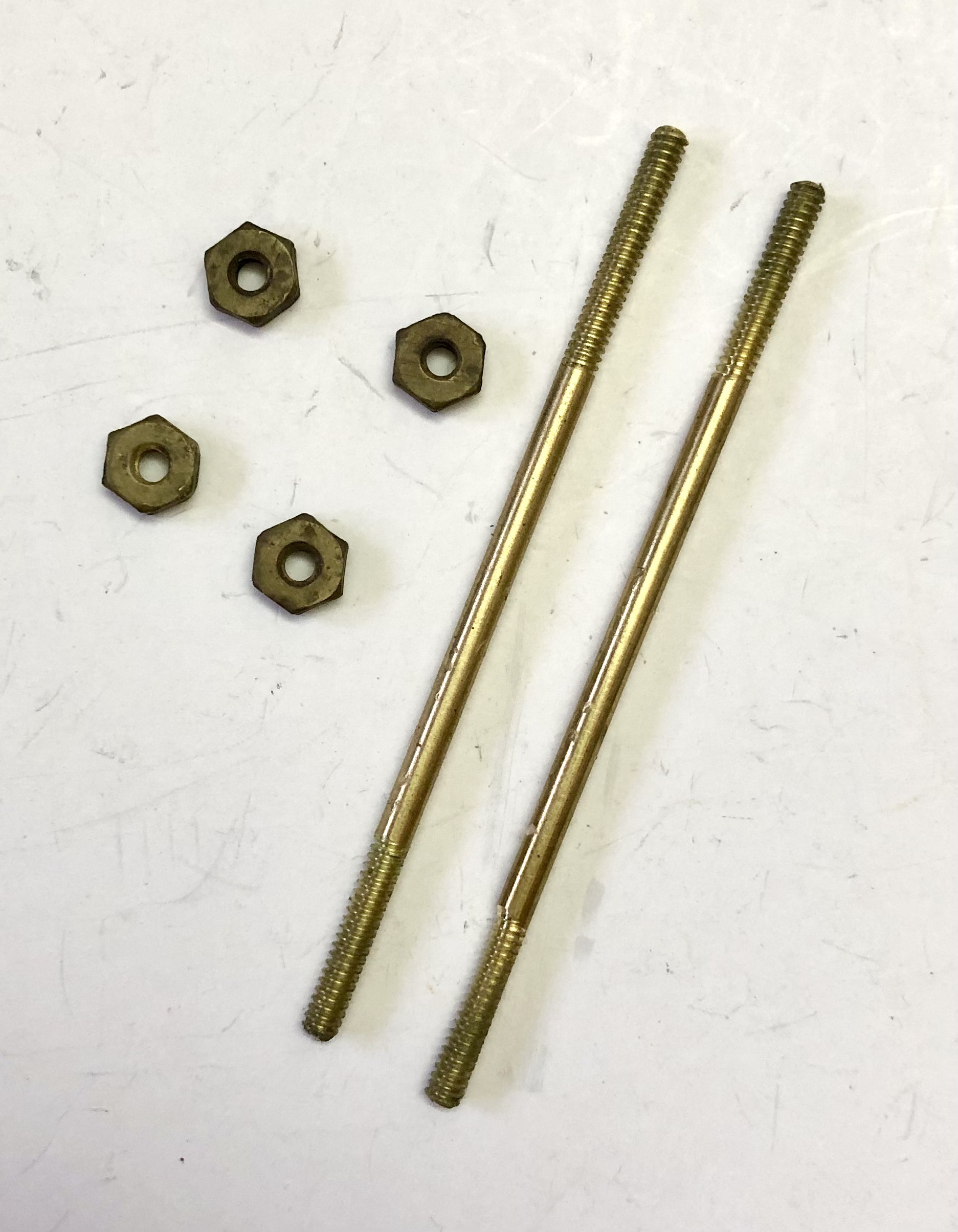

| 2 Buss Bars 6-32 Threads With 4 Brass Nuts |
X | X | |
| 2 Wire retainers for face plate edge
4 0-80 x 1/4″ Machine screws for face plate |
X |
X |
|

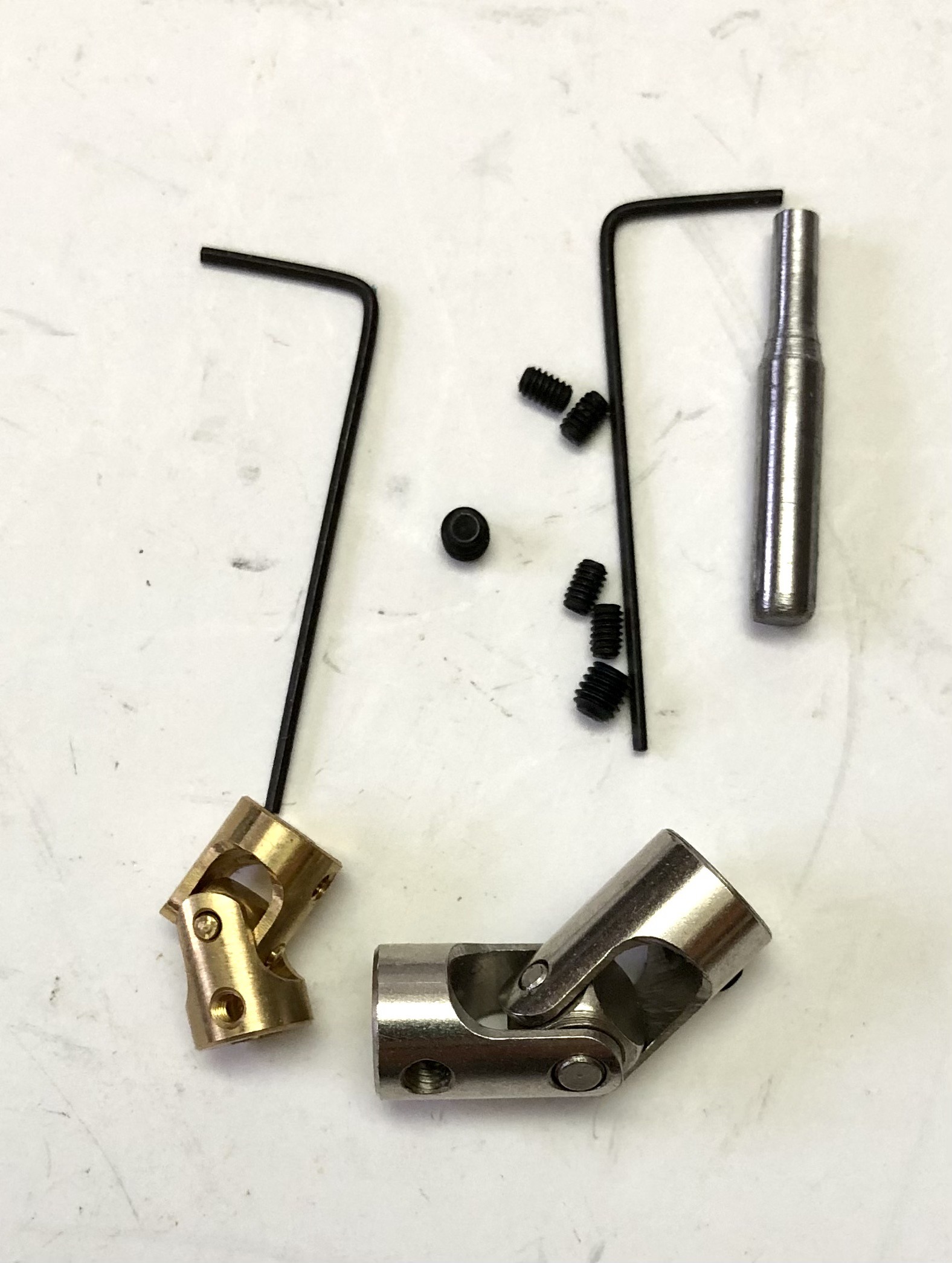

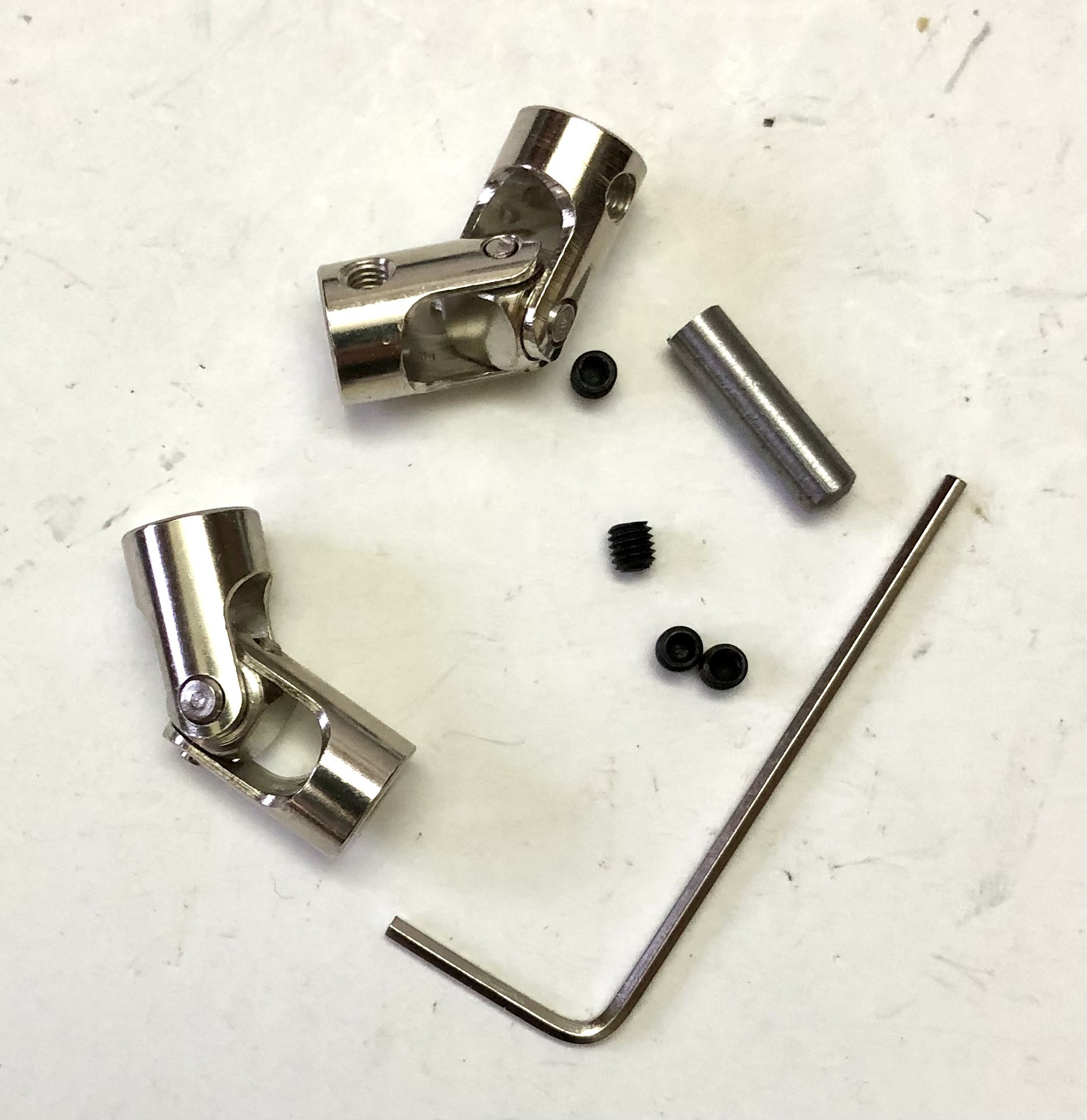

| Universal Joints 3-3 mm ID, PN#533AN See
All Nation Universal Joint Coupling 3-3 Metal (OD: 9mm Length: ~23mm) PN#533AN |
2 | 3 | |
| 1 Universal Joint 3-3 mm ID, PN484AN See
All Nation Universal Joint Coupling 3-3 Brass (OD: 7mm, Length: ~14mm)PN#484AN |
X | ||
| Drive shaft connecting rods | 1 | 2 | |

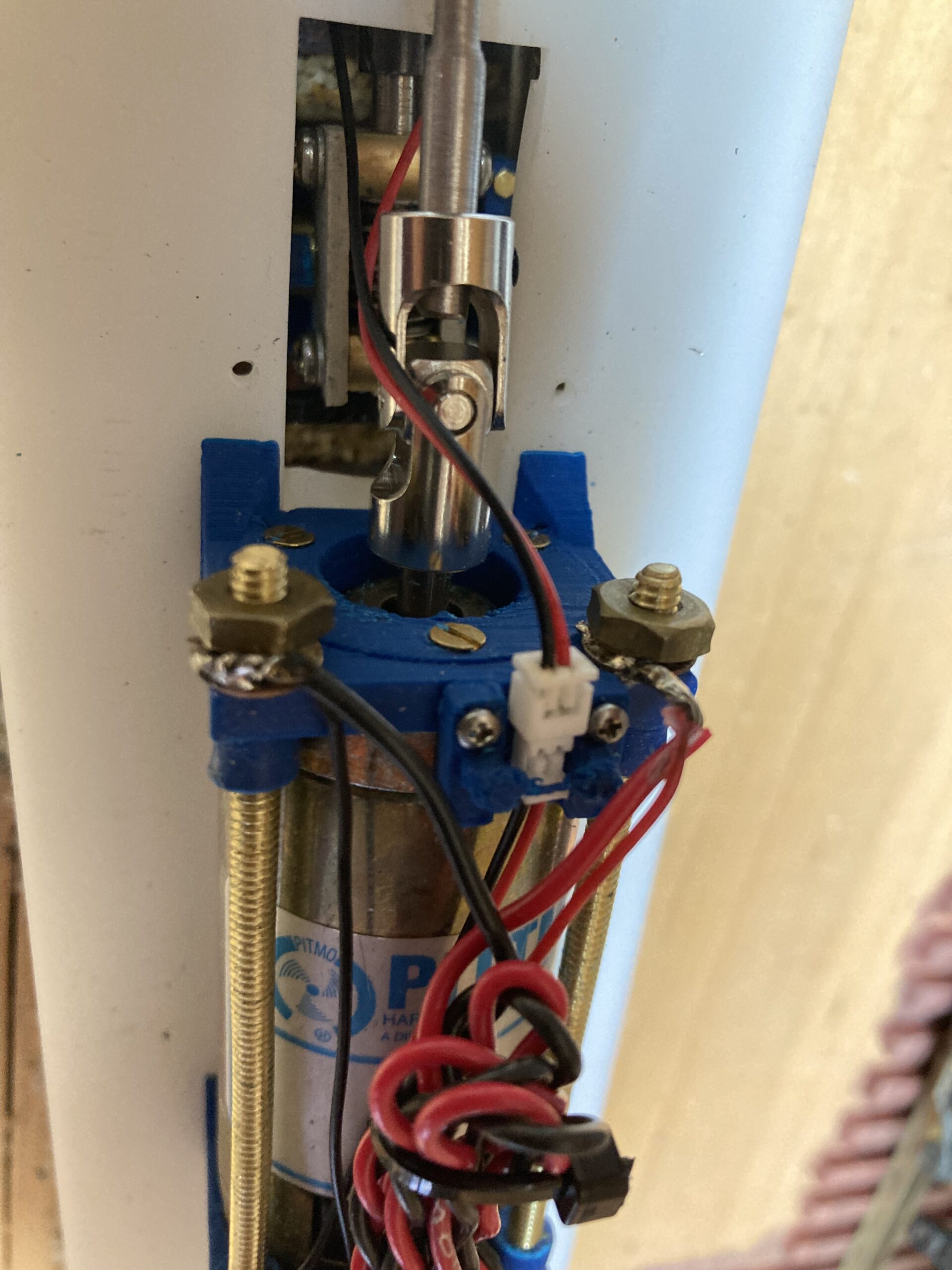

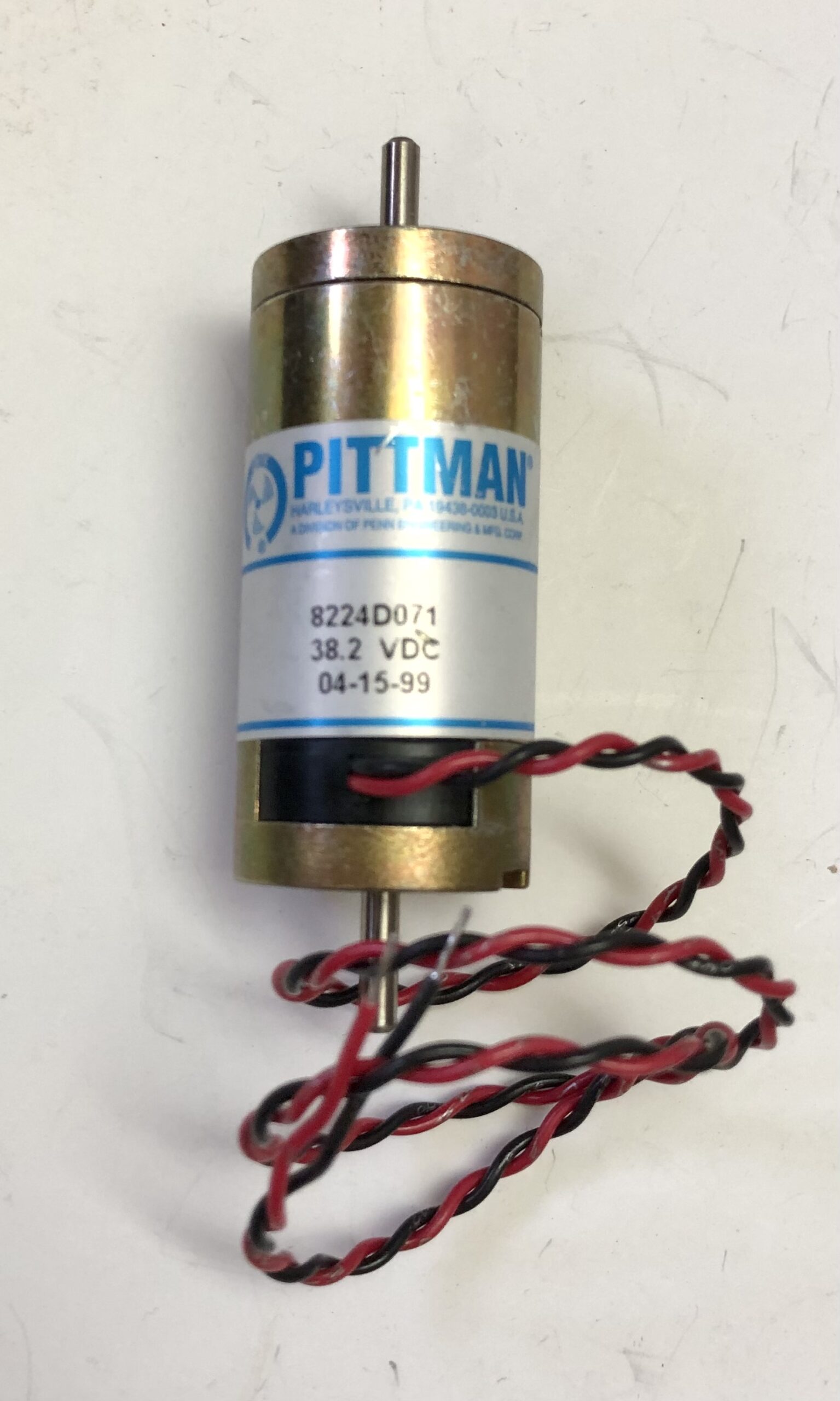

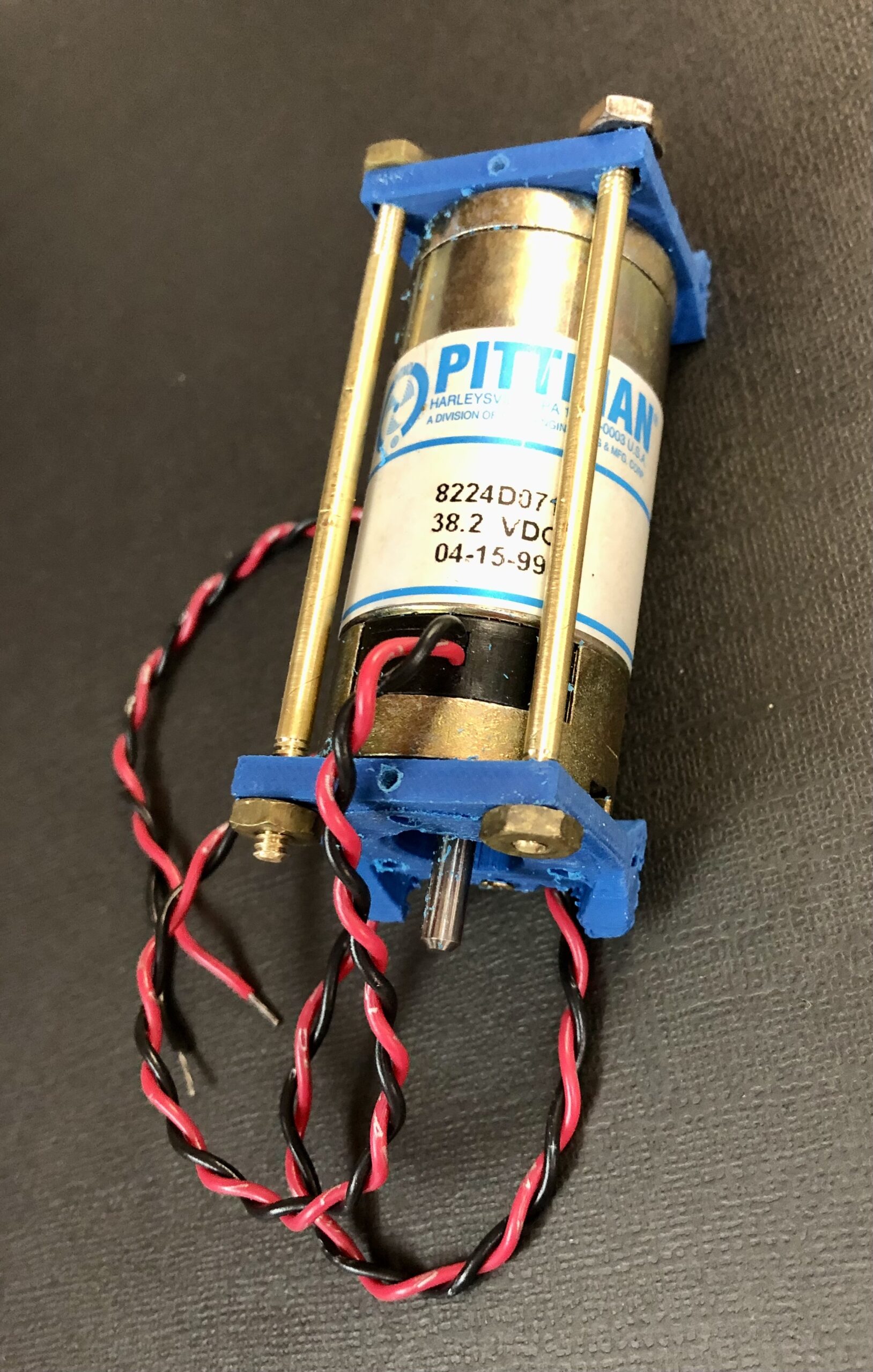

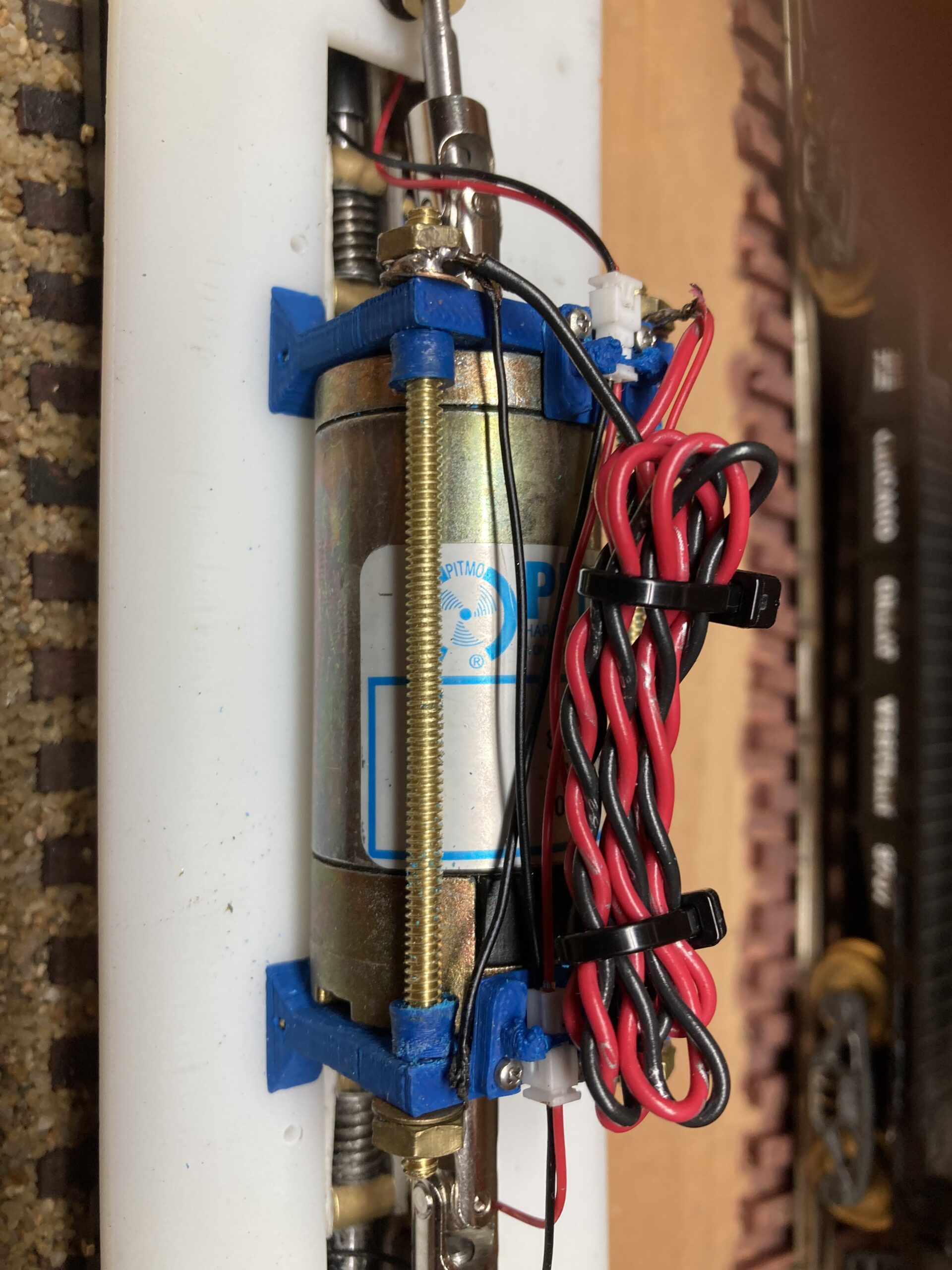

| 1 Pittman motor
For Single drive, motor will be 24 vdc or high based on our stock See example Pittman motor 38.2 vdc Single Shaft Old/New Stock PN#454AN For Dual Drive, See |
X | X | |
| Set Screws with Allen Key included for all universal joints | X | X | |

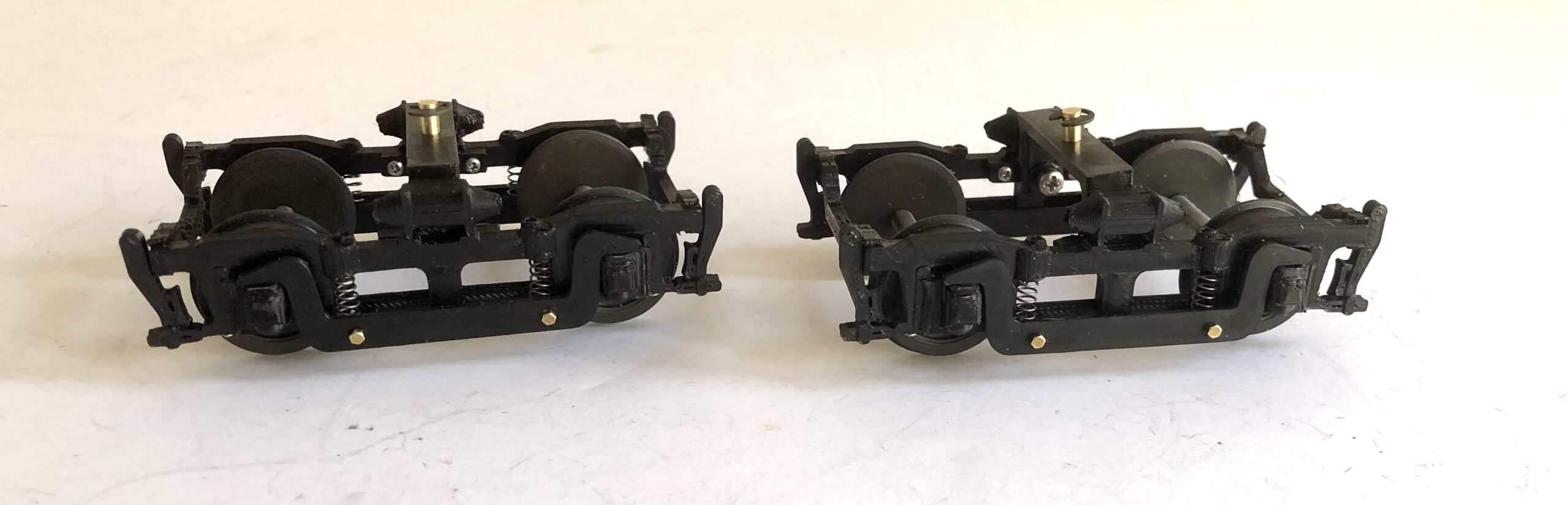

| 2 C-Clips to secure king pins when mounting the truck to the floor. King pins come with with the assembled truck bolster.
|
X | X | |
| 2 King Pins & 2 C Clips for mounting the truck to the floor. See All Nation King Pin, Brass (PN#1009) for F3/F7 Engine & C Clips (PN#C2036) PN#1009 |
X |
||

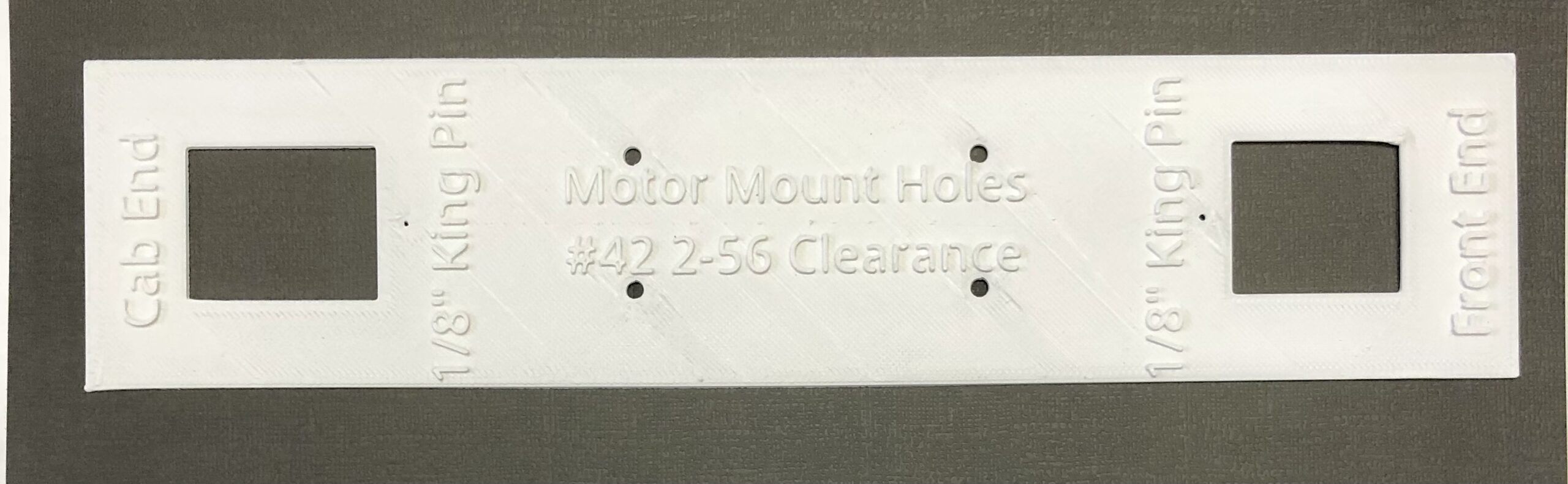

| 1 Drill Die Template specific for Pittman motors model #8224D071
|
X | X |
