For Sale: All Nation EMD Flex-I-Coil (1 Pair) With 40″ Wheels & Journal Ball Bearings UNASSEMBLED Kit PN#627AN
This is the 1st of 3 versions available utilizing our drives and transmissions whereby the journal ball bearings can be used with all our legacy drives with axle ends at 3/32″. (see links below for 2 additional versions using either PTFE Bearings or Bronze Eyelets)

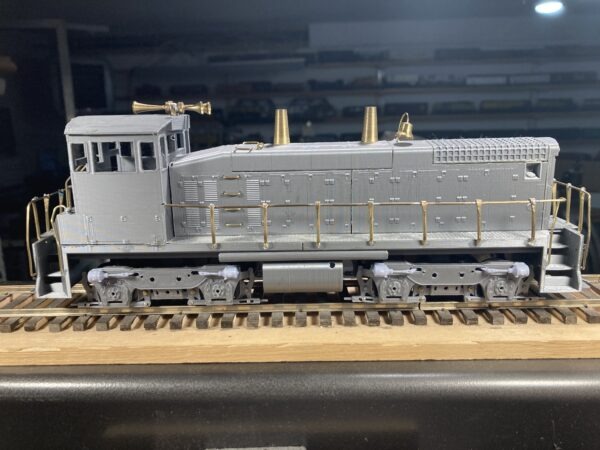

(Reference SW1500 model demonstrates the trucks – for example only – not included in this purchase.)

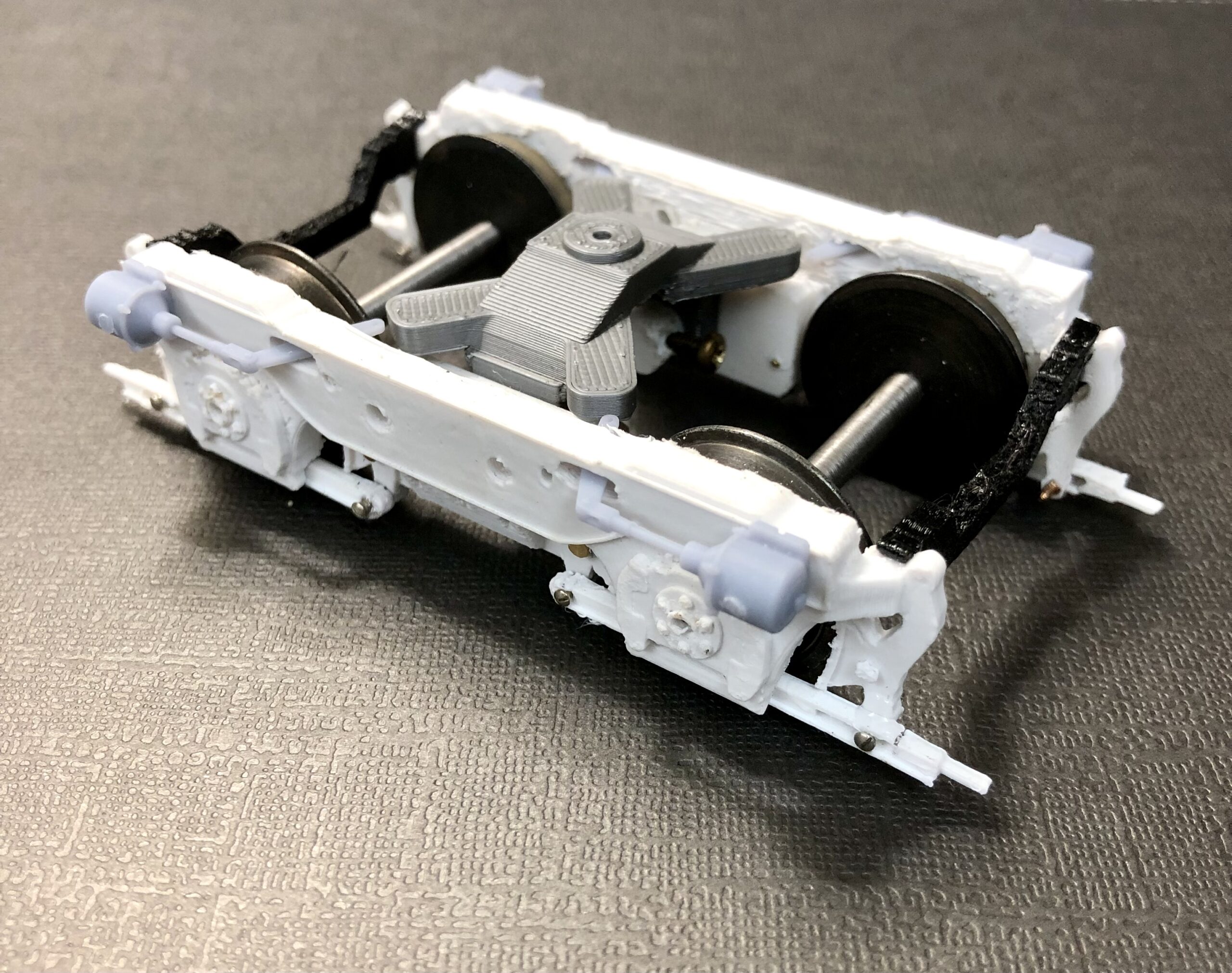

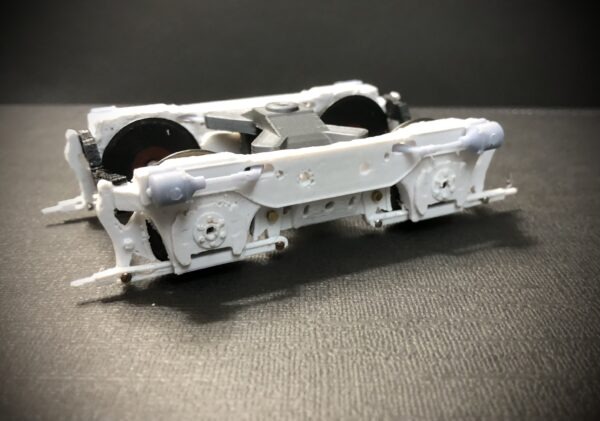

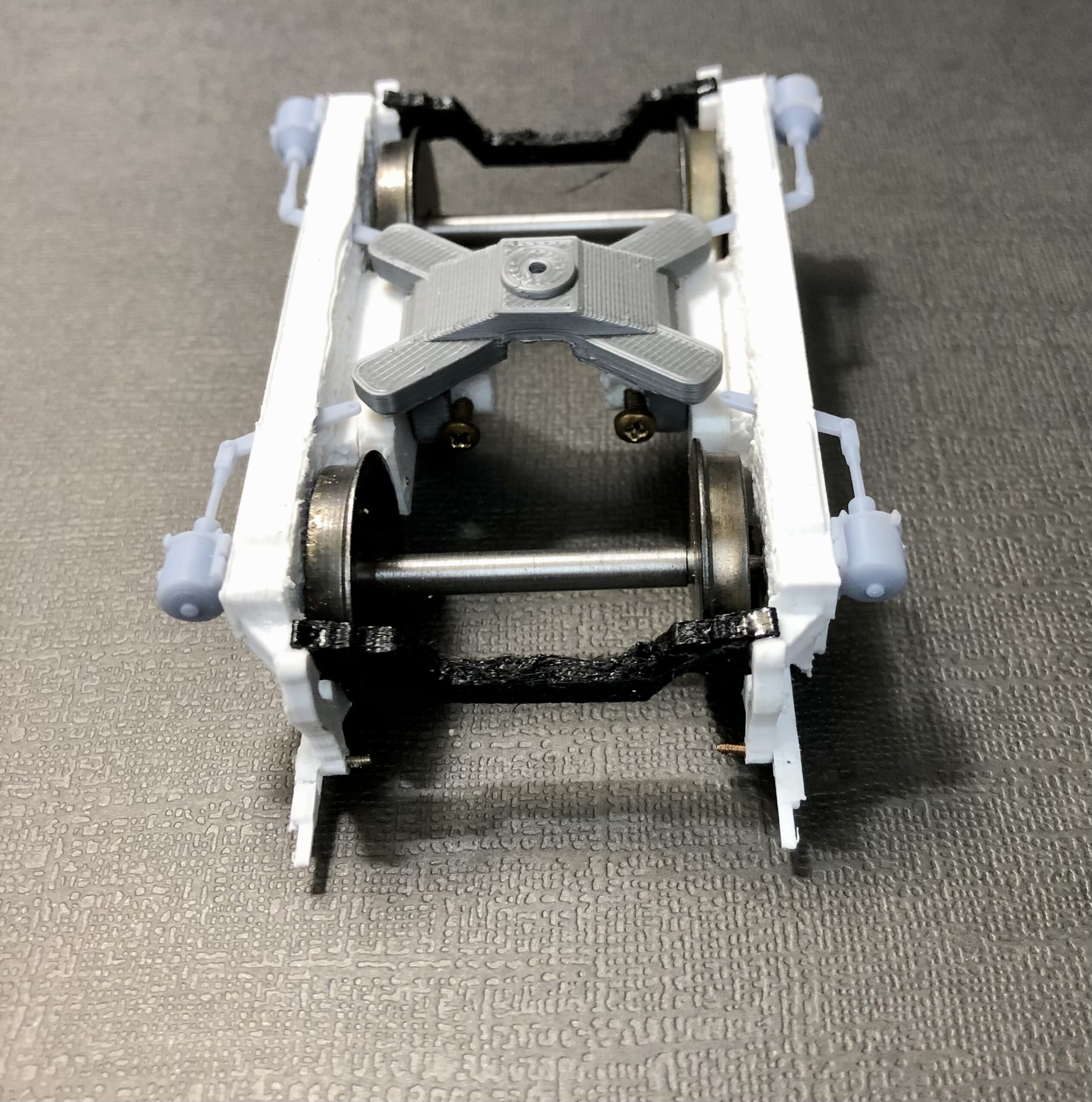

This truck is one variation of the EMD Flex-I-Coil Truck utilized on switchers such as the SW 1500. This kit is 3D printed using 4 grades of filaments that include TPU, PETG, PLA, ABS and is an easy to assemble operational truck without power. This truck kit can also accommodate various All Nation transmissions for powering your locomotive. For complete instructions on doing the assembly, please see our video below.

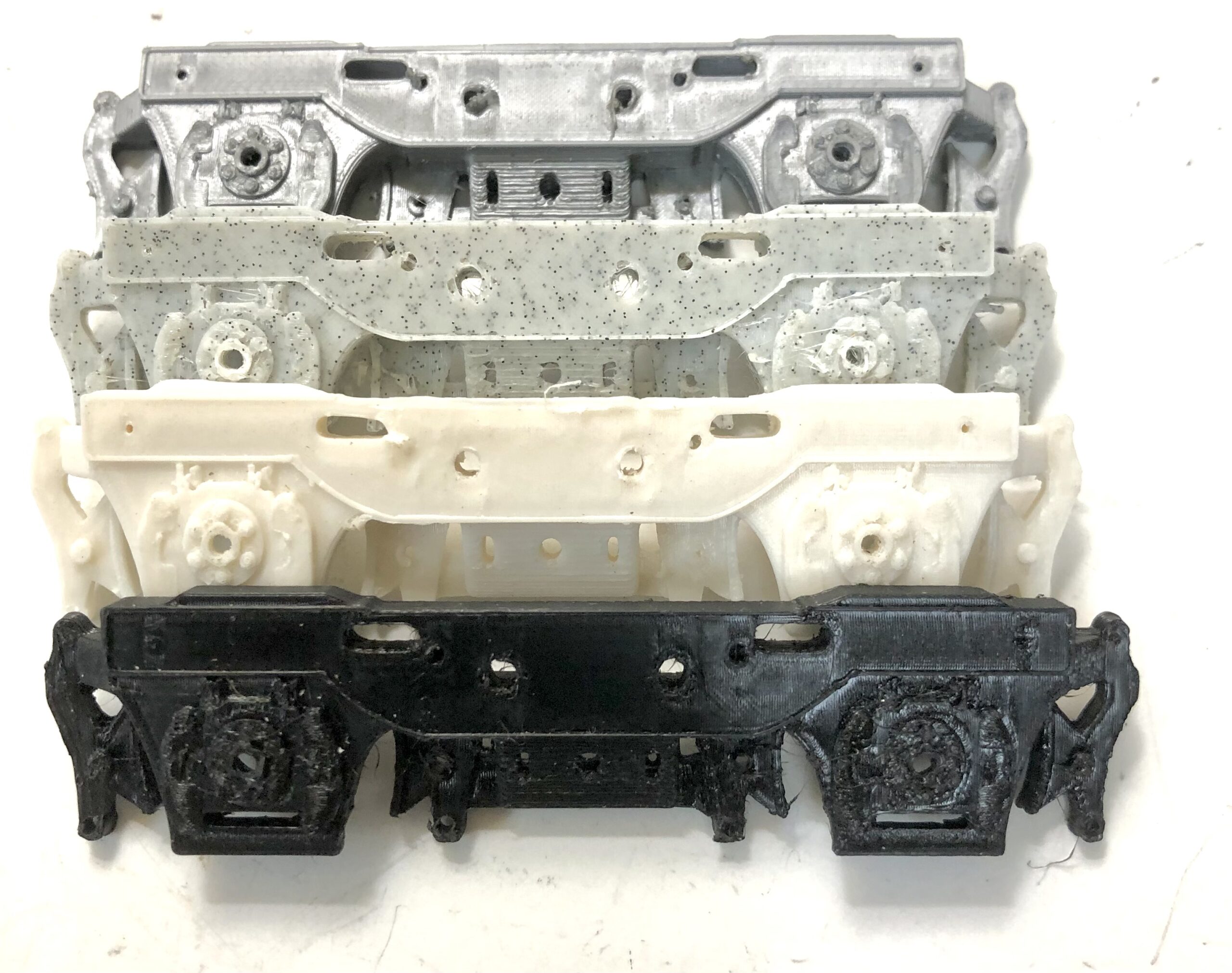

Trucks may come in various colors (see photo example). Let us know your color preference or we will just send what we have in stock. Schematic diagrams referenced for assembly.

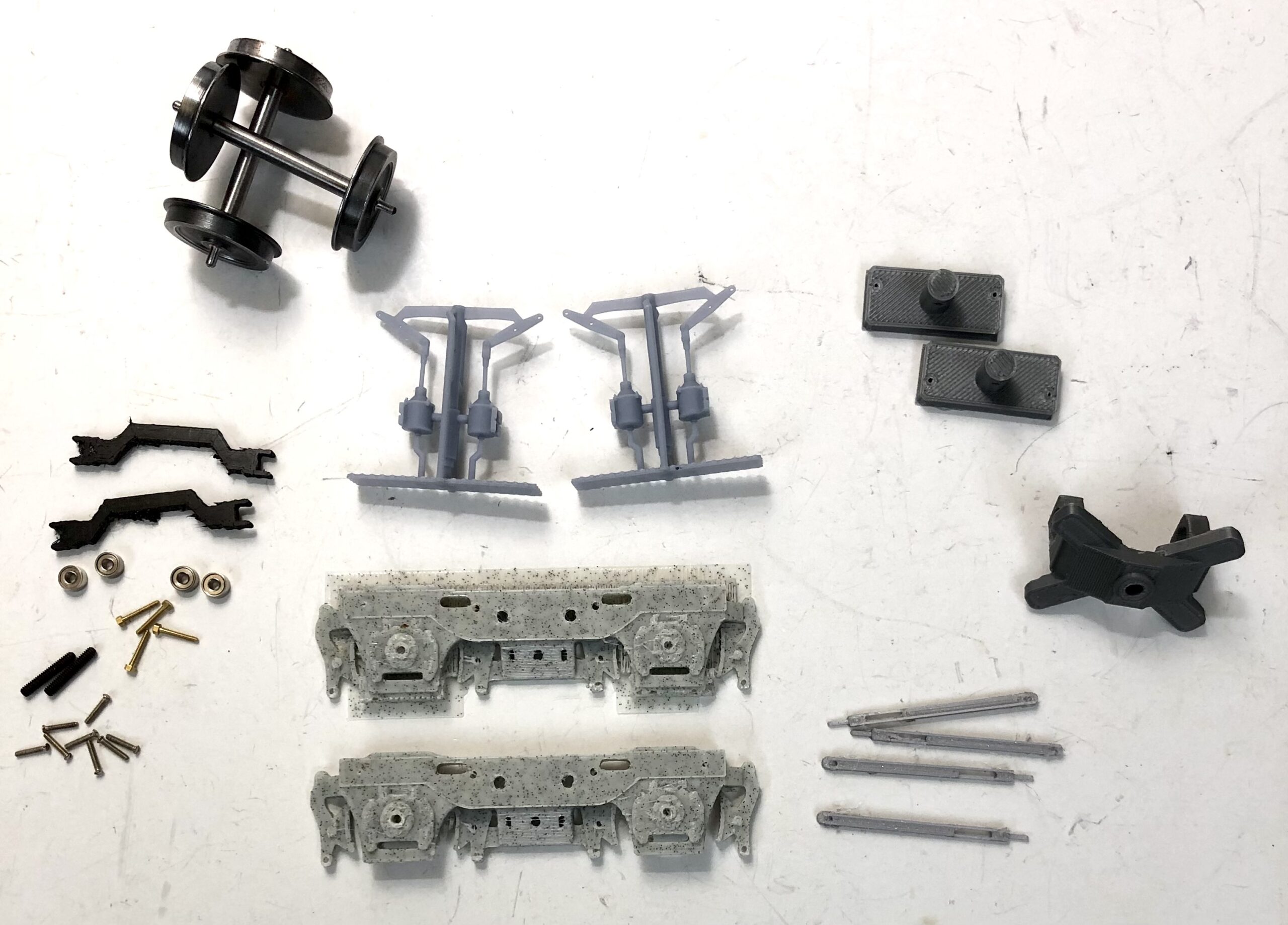

Parts List:

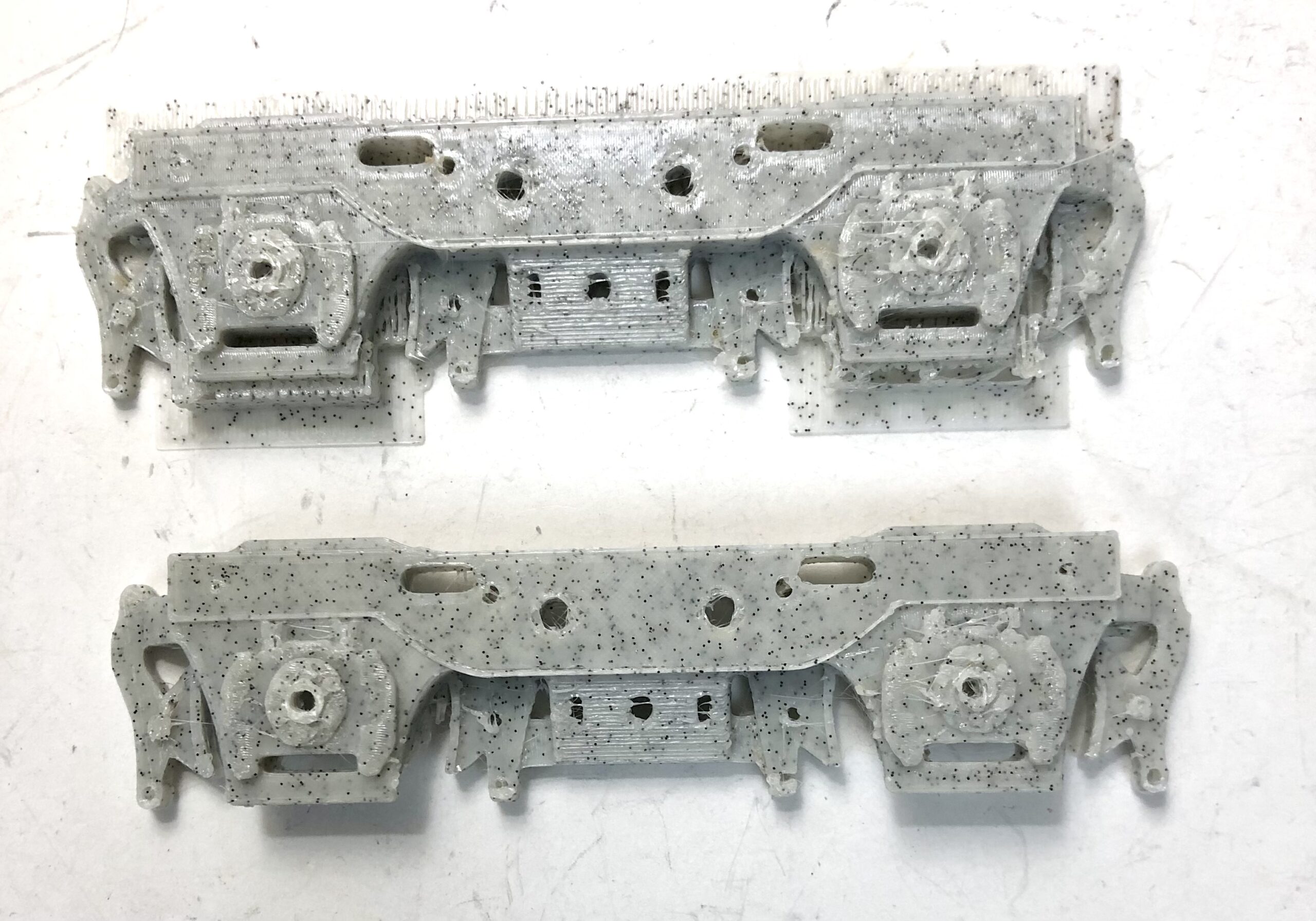

2 Truck Sideframes

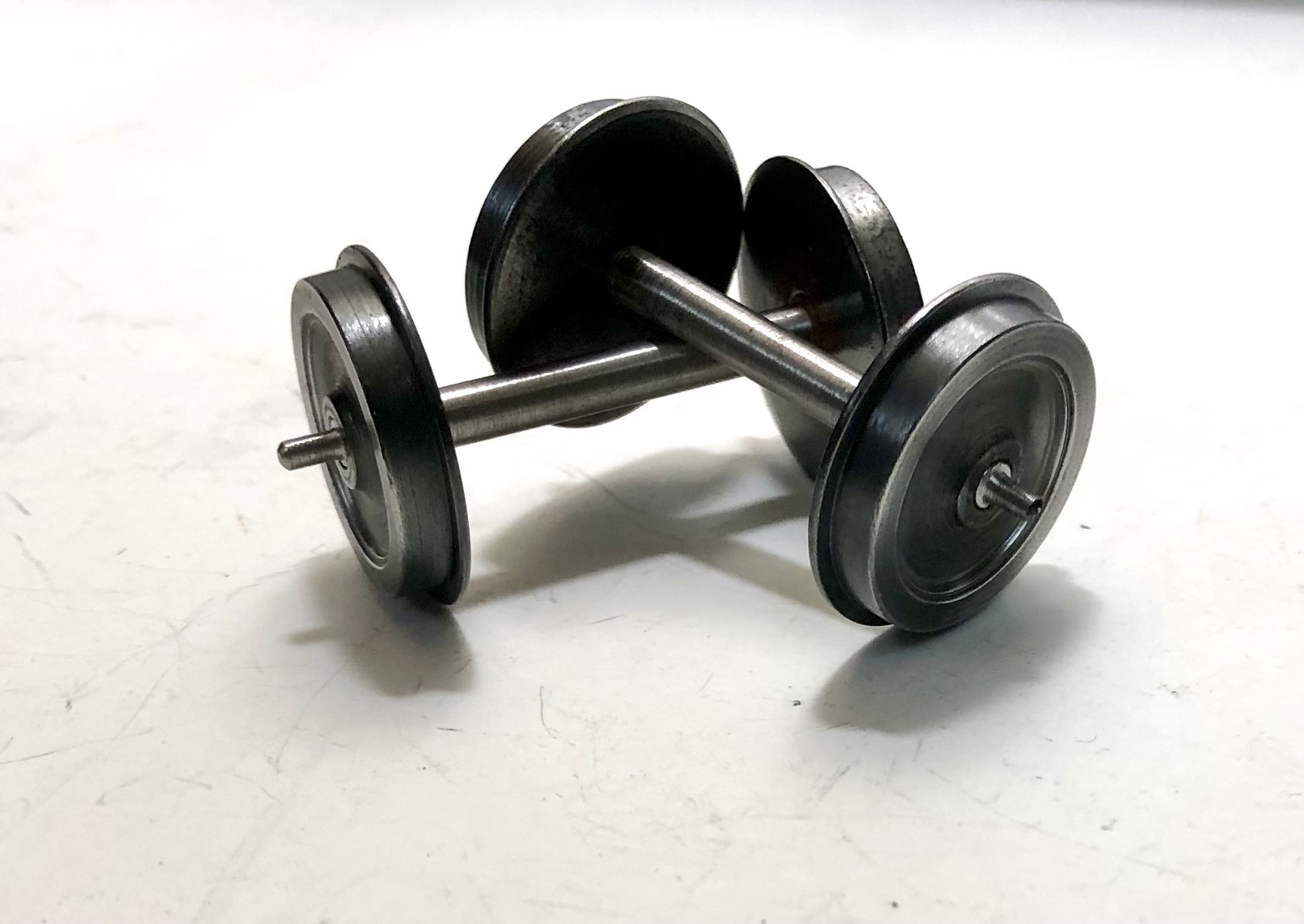

4 40″ Wheels Pressed on Axles with insulators

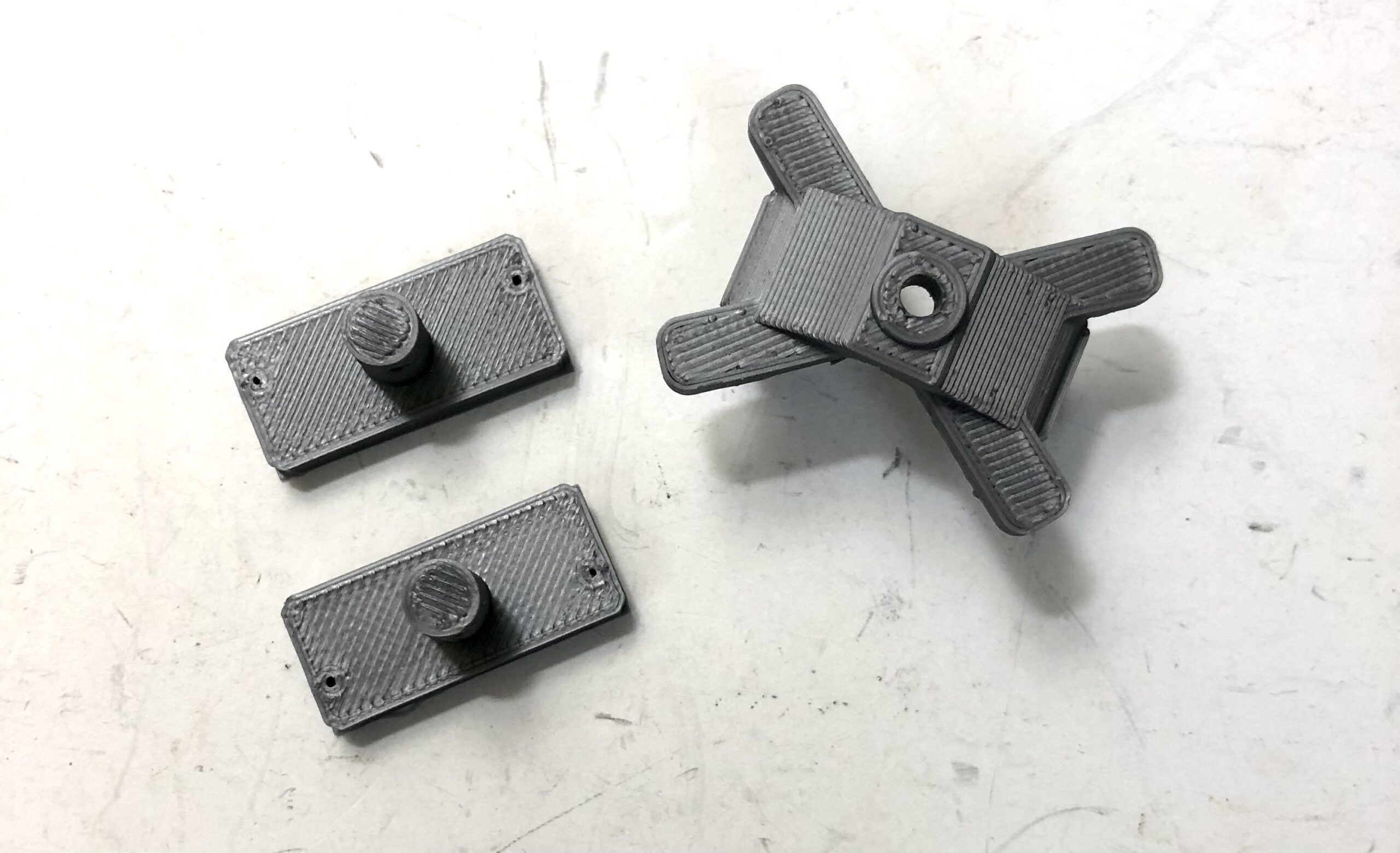

2 Sideframe Bolster Plates with Stud
1 Bolster

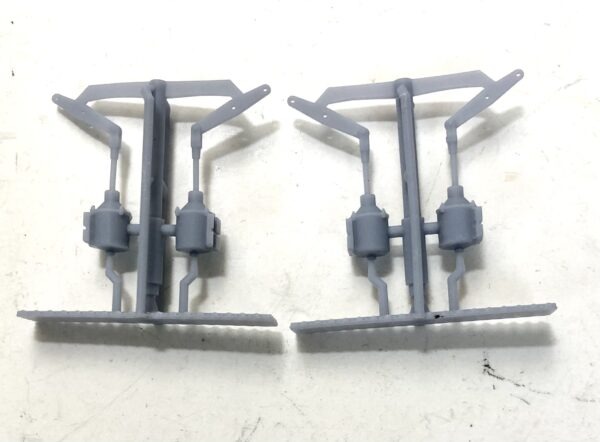

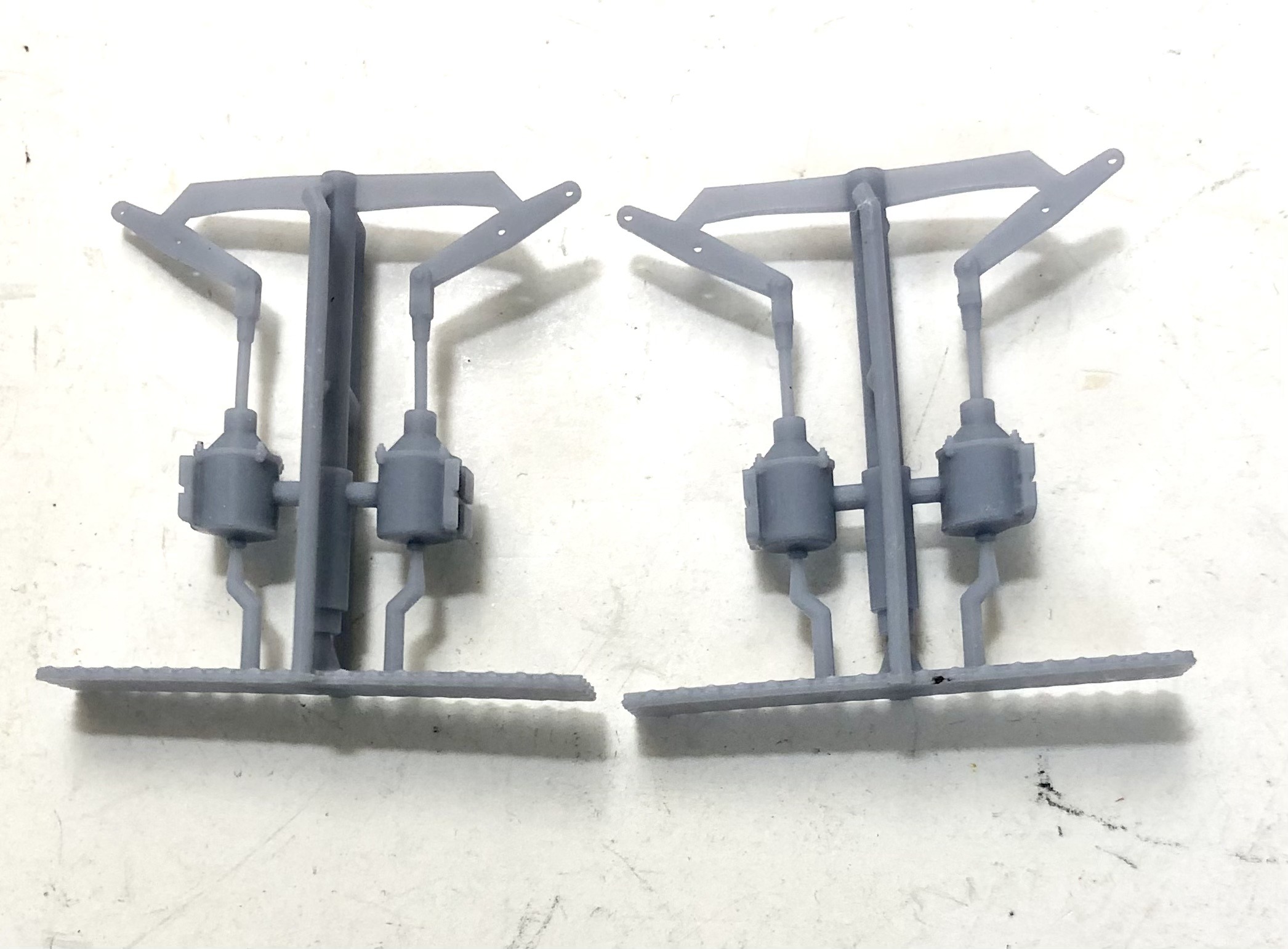

4 Brake Slack Adjusters
4 Air Brake Cylinders

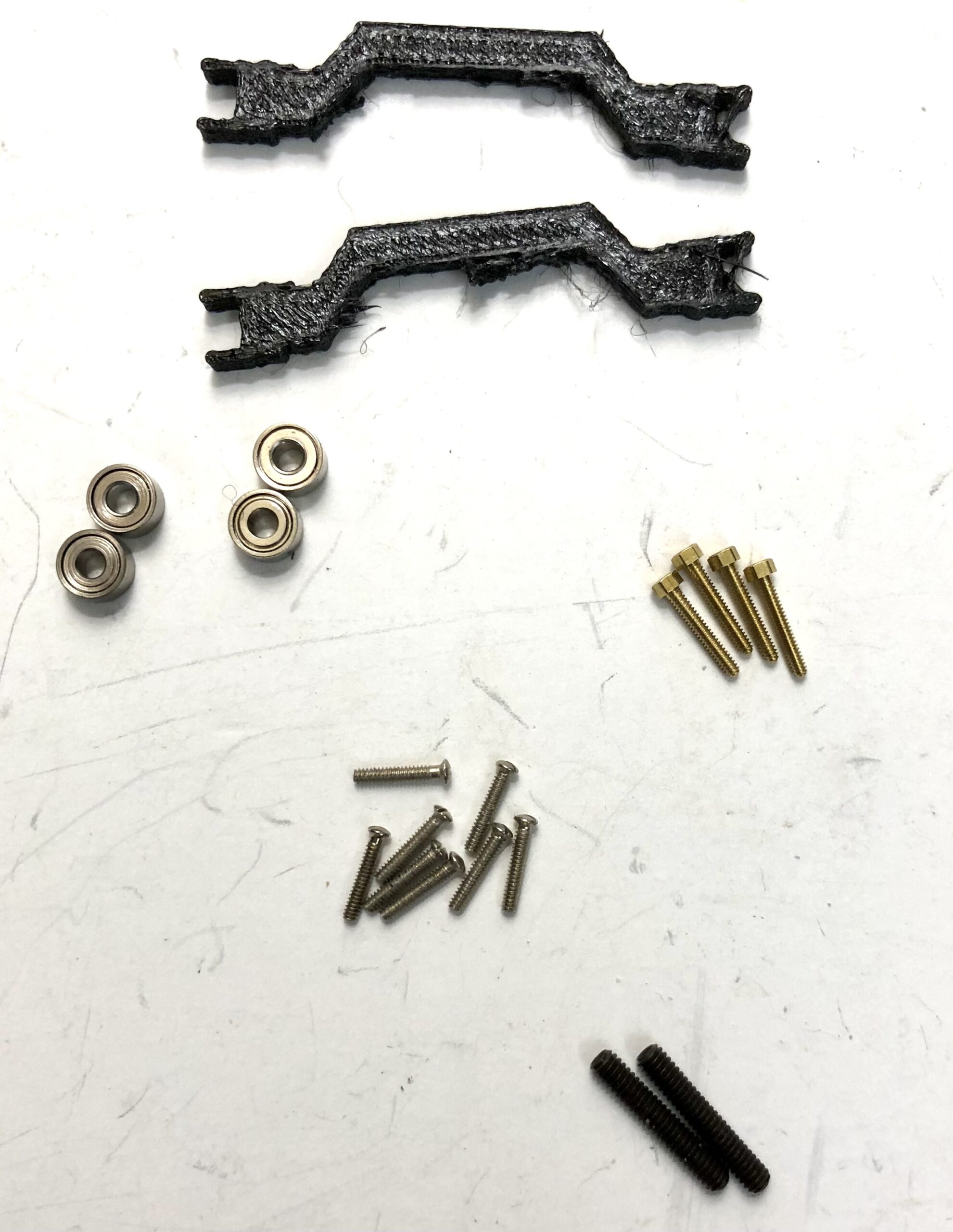

2 Frame End Bars (TPU)
4 Journal Bearings
4 0-90 Hex Machine screws 3/8″
8 optical screws
2 2-56 Set Screws for Bolster Plates

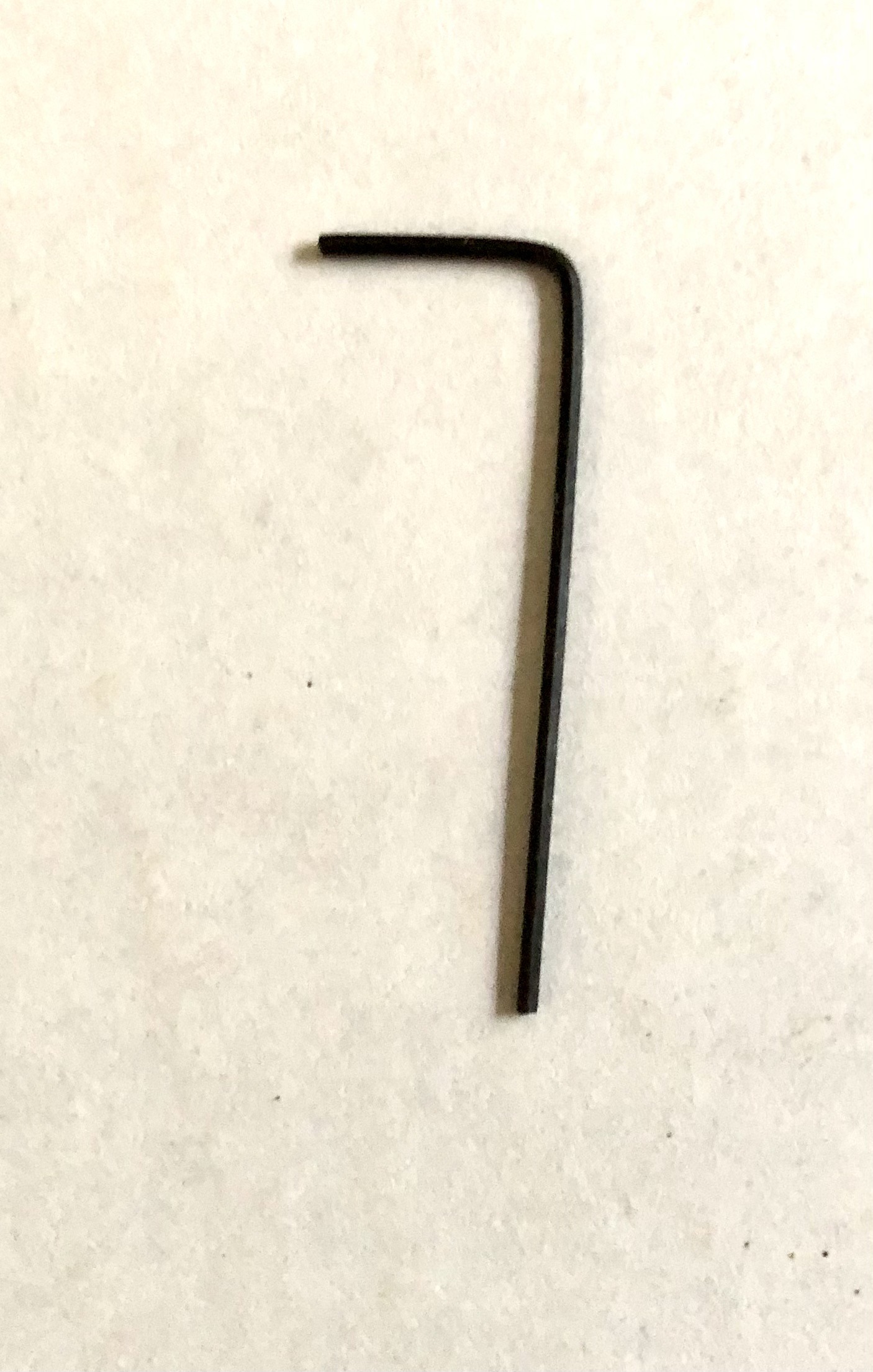

1 Allen Key for the 2-56 Set Screws
Tools That May Be Required:
Socket wrench for hex head 0-90 machine screws
2-56 tap

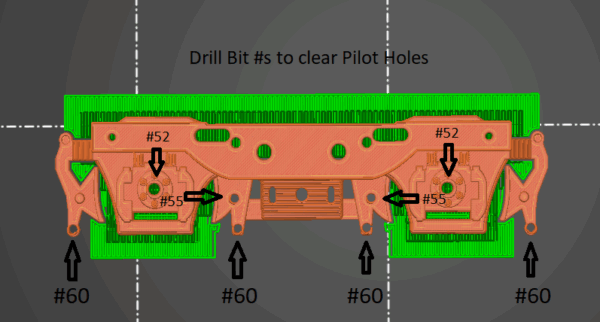

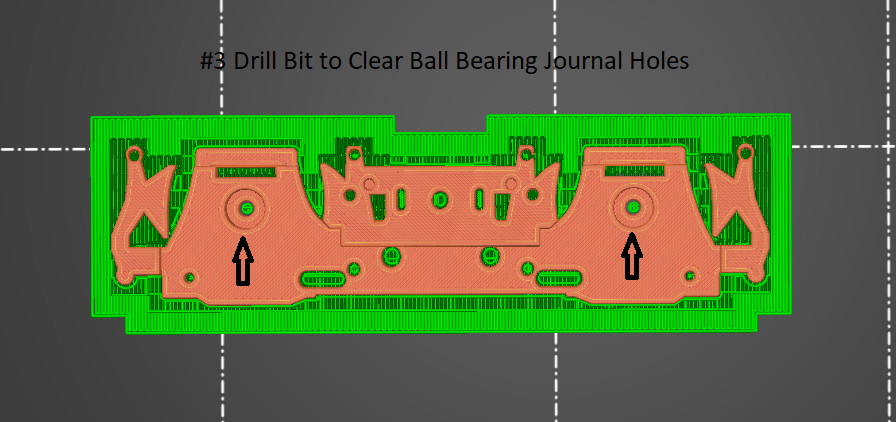

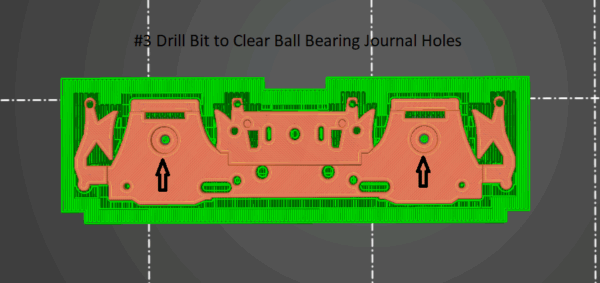

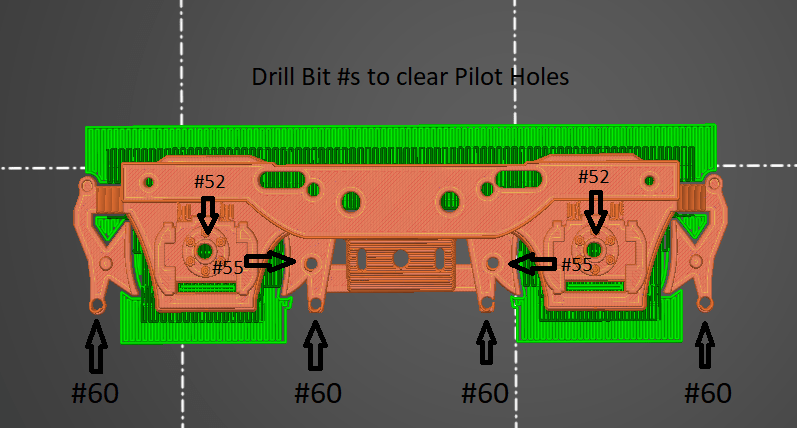

Drill Bits #3, #50, #52 & #55
A fine file
An Exacto Knife/Blade
A Dremel with a router type bit & a Cut-off wheel #406
CA Glue

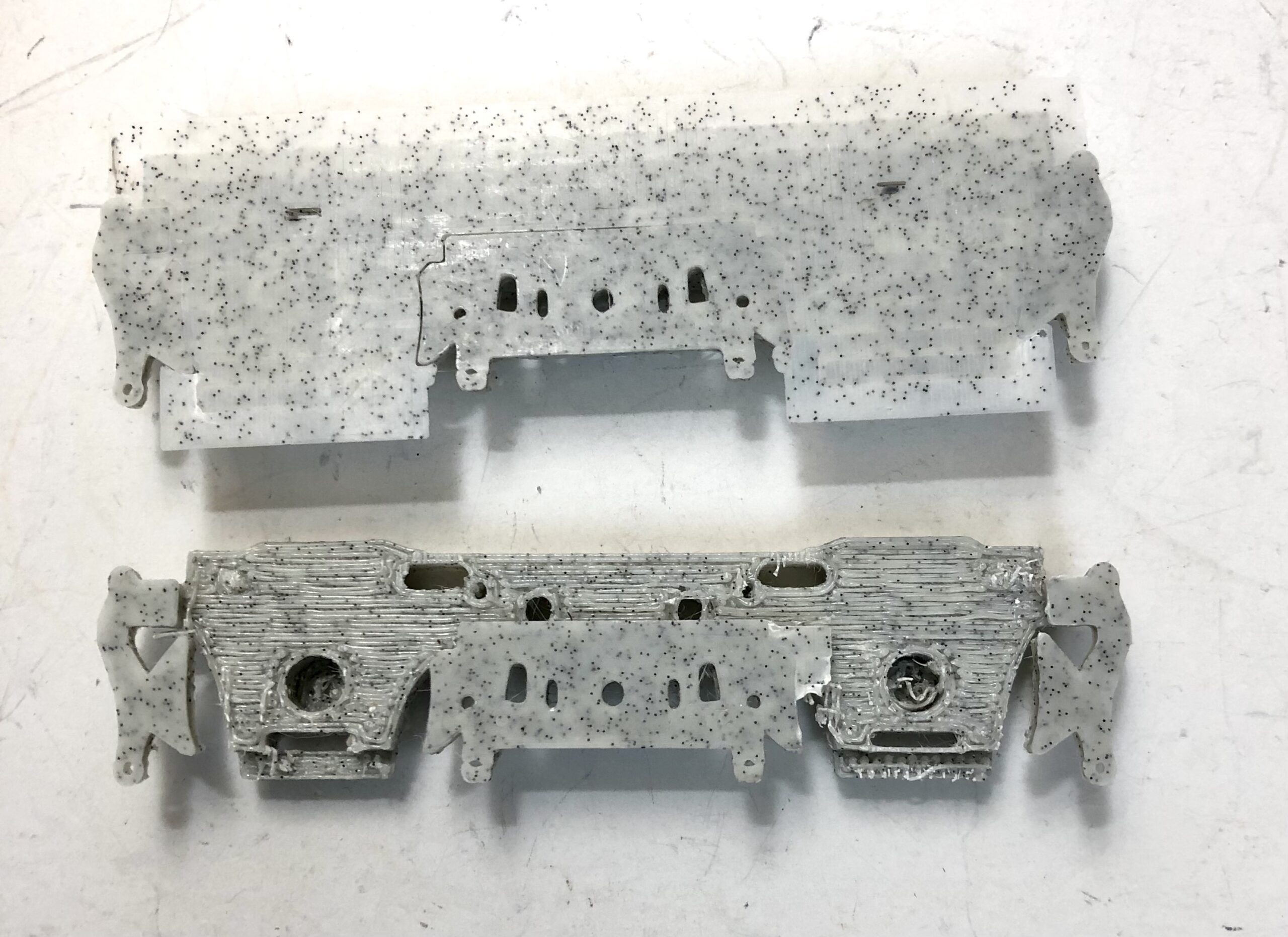

Note: 3D Printed parts may require the modeler to do some clean up on the parts to remove build plate support materials, threads and brims.
Depending on your needs, two additional versions of this product are linked below:
All Nation EMD Flex-I-Coil (Single) With 40″ Wheels & Bronze Eyelets UNASSEMBLED Kit PN#647AN
All Nation EMD Flex-I-Coil (Single) With 40″ Wheels & PTFE Bearings UNASSEMBLED Kit PN#648AN
